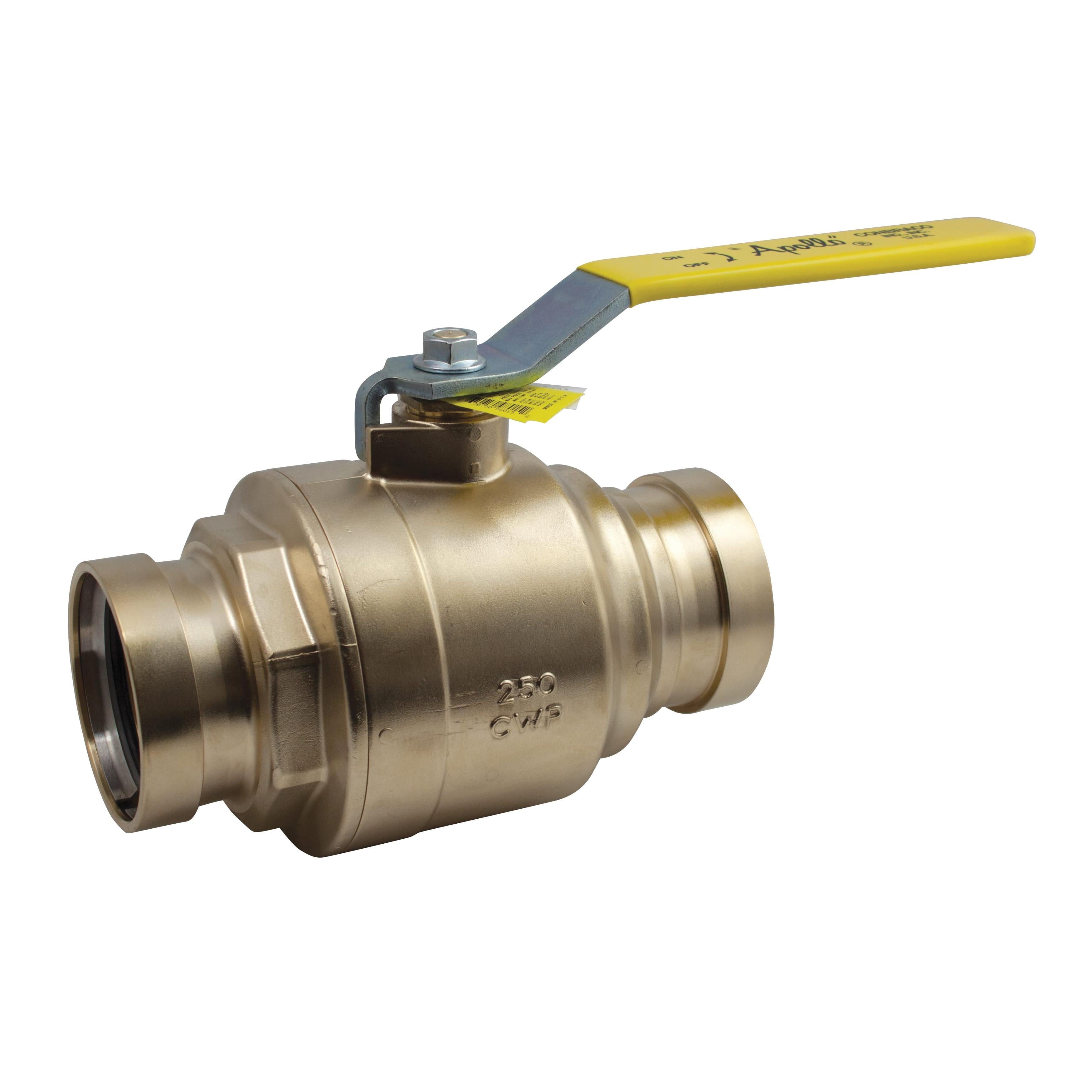

Conbraco 77V-106-01 Apollo Valves Apollopress 77V Series Two-Piece Ball Valve, 1-1/4 in Press Connection

Product Description

The CONBRACO 77V-106-01 ApolloPress® 77V Series two-piece press ball valve is ideal for installation in heating, cooling and non-potable plumbing applications. It features leak before press® technology and a 300 psig maximum working pressure. It is made in the USA.

• Two-piece, heavy pattern forged design
• Superior RPTFE seats and packing
• Adjustable stem packing gland

Product Highlights

This ball valve has corrosion-resistant construction and is 100% factory tested. It has a standard lever handle actuator and a chrome-plated brass ball.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 77V-106-01
• Country of Origin: USA

Technical Specifications

• Actuator Type: Standard Lever Handle
• Ball Material: Chrome-Plated Brass
• Body Material: C37700 Forged Brass
• Connection Type: Press
• Domestic/Import: Domestic
• Handle Material: Plated Steel/Polyvinyl
• Inlet to Outlet Length: 4.22 in
• Material Standard: ASTM B88 Type K/L/M, ASTM B16, ASTM B283
• Nominal Size: 1-1/4 in
• Opening Size: 1-1/4 in
• Packing Material: RPTFE
• Port Type: Full
• Pressure Rating: 300 psi
• Seal Material: EPDM
• Seat Material: RPTFE
• Series: 77V Series
• Stem Material: C37700 Forged Brass
• Temperature Rating: 0 to 250 deg F
• Top to Inlet Center: 2.44 in
• Trim Material: C36000 Brass/C37700 Forged Brass/Plated Steel
• End Style: PRESS
• Manufacturer: Apollo Conbraco
• Manufacturer #: 77V-106-01
• Type: 2-Piece Heavy Pattern
