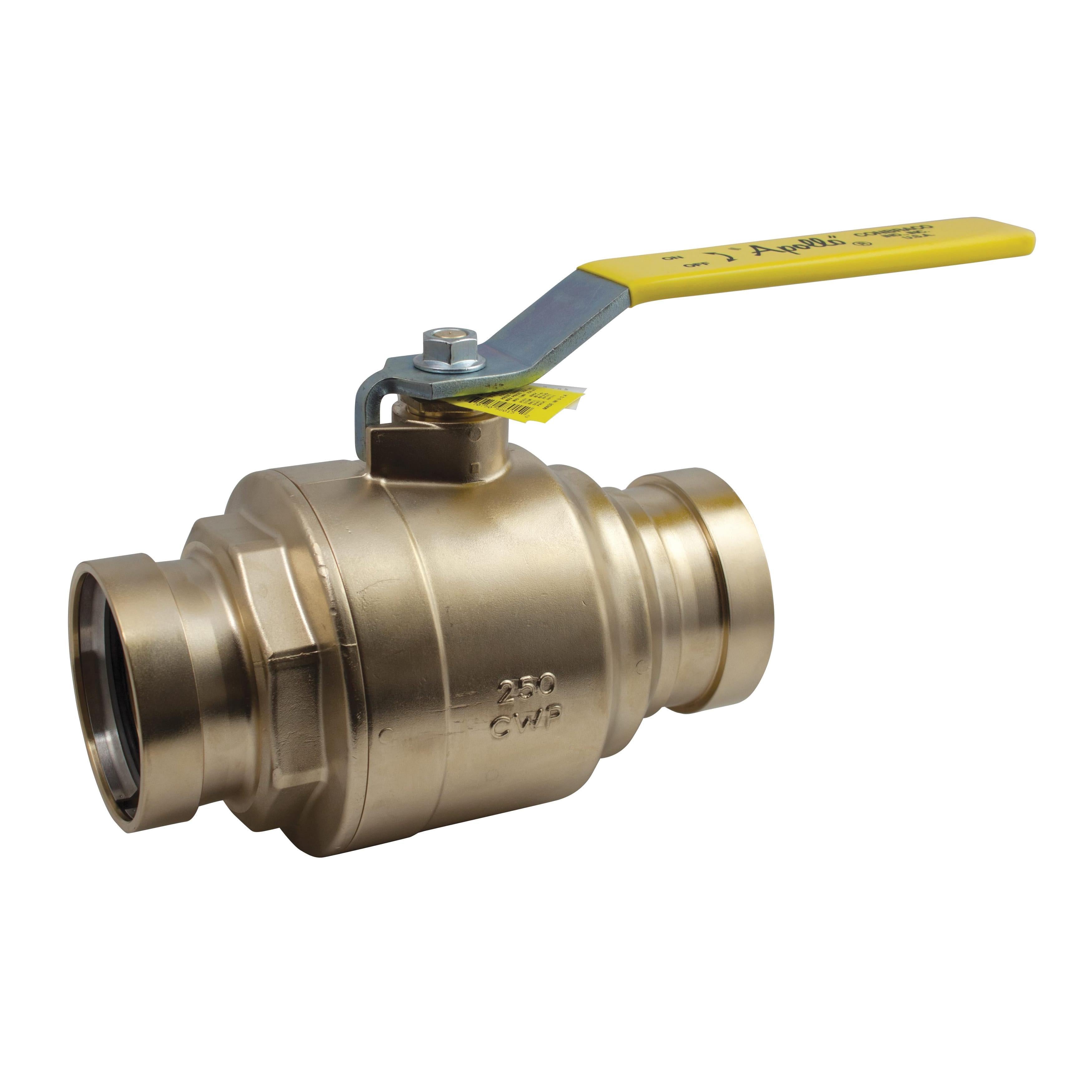

Conbraco 77V-103-01 Apollopress® 2-Piece Heavy Pattern Ball Valve, 1/2 inches, Press

Product Description

The CONBRACO 77V-103-01 ApolloPress® 77V series 2-Piece press ball valve is ideal for installation in heating, cooling and non-potable plumbing. It features Leak Before Press® technology and a maximum working pressure of 250 psig. It has superior RPTFE seats and packing and an adjustable stem packing.

• Superior RPTFE seats and packing
• Adjustable stem packing
• Ridgid® XL press tool compatible (1/2 to 2 in)

Product Highlights

This 2-piece heavy pattern ball valve has corrosion resistant materials and is 100% factory tested.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 77V-103-01
• Country of Origin: Domestic

Technical Specifications

• End Style: PRESS
• Nominal Size: 1/2 in
• Actuator Type: Standard Lever
• Ball Material: Chrome Plated Brass
• Inlet to Outlet Length: 2.89 in
• Manufacturer: Apollo Conbraco
• Manufacturer #: 77V-103-01
• Series: 77V
• Temperature Rating: 0 to 250 deg F
• Top to Inlet Center: 1.66 in
• Type: 2-Piece Heavy Pattern
• Pressure Rating: 300 psi
• Opening Size: 1/2 in
• Body Material: C37700 Forged Brass
• Handle Material: Plated Steel/Polyvinyl
• Material Standard: ASTM B88 Type K/L/M, ASTM B16, ASTM B283
• Packing Material: RPTFE
• Port Type: Full
• Seal Material: EPDM
• Seat Material: RPTFE
• Stem Material: C37700 Forged Brass
• Trim Material: C36000 Brass/C37700 Forged Brass/Plated Steel
• Connection Type: Press
• Domestic/Import: Domestic
