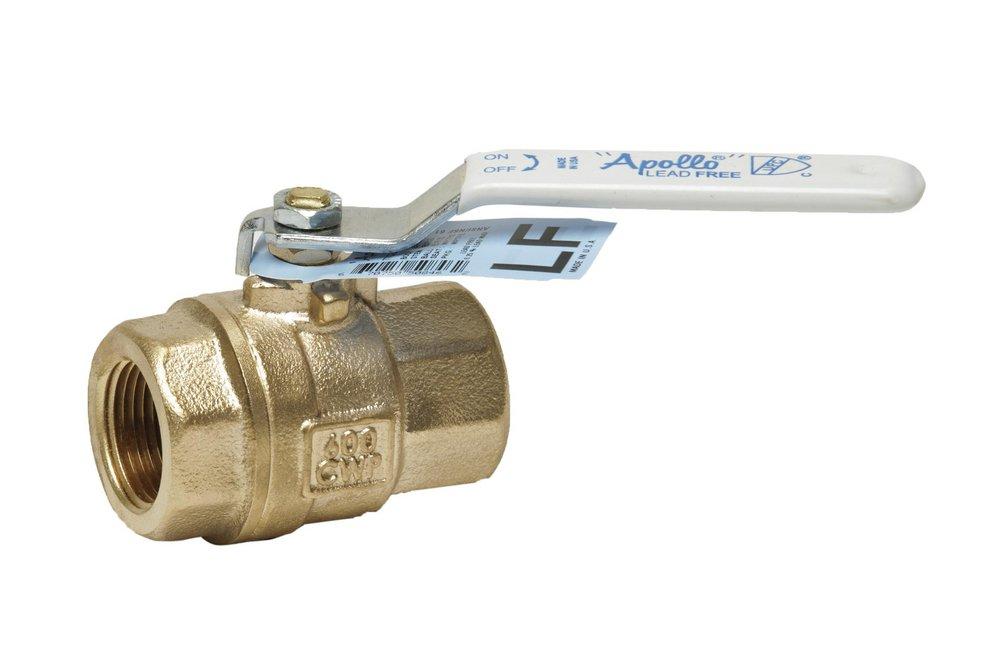

Apollo Valves 77CLF20301A 1/2 x 1/2 C x C 600 PSI CWP Non-Shock Lead-Free Ball Valve

Product Description

The Apollo Valves 77CLF20301A is a ball valve designed for various plumbing applications. This model offers a nominal size of one half by one half inches with female soldered connections. It has a pressure rating of six hundred pounds per square inch for cold working pressure and one hundred fifty pounds per square inch for steam working pressure. The valve features a lead-free construction with chrome plated brass and dezincification resistant bronze.

• Full port design for maximum flow
• Blowout-proof stem for added safety
• Adjustable stem packing for improved sealing

Product Highlights

This ball valve is ideal for both potable and non-potable applications. It is especially useful in commercial settings where reliability is crucial.

Product Information

Standard Information

• Manufacturer: Conbraco
• UPC: 670750362507

Technical Specifications

• Nominal Size: 1/2 Inch x 1/2 Inch
• End Connection: Female Soldered x Female Soldered
• End to End Distance: 2.47 Inches
• Temperature Rating: 450 Degrees Fahrenheit
• Pressure Rating: 600 PSI CWP Non-Shock, 150 PSI SWP
• Ball Material: C27451 Chrome Plated Brass
• Body Material: ASTM B584 C89836 Bronze
• Seal Material: RPTFE
• Seat Material: RPTFE
