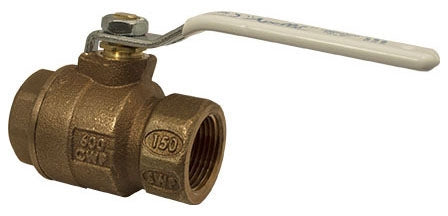

Apollo Valves 77CLF10501A 1 x 1, FPT x FPT 600 PSI CWP Non-Shock 150 PSI SWP Lead-Free Ball Valve

Product Description

The Apollo Valve 77CLF10501A is a lead-free ball valve designed for plumbing applications. It features a two-piece construction, which allows for easy installation and maintenance. This valve has a nominal size of one inch and fits female threaded connections. The valve's construction includes a chrome plated brass ball and a dezincification resistant bronze body, ensuring durability and longevity.

• Pressure Rating: 600 PSI CWP Non-Shock, 150 PSI SWP
• Temperature Rating: 450 Degrees Fahrenheit
• Full port design for high flow capacity

Product Highlights

This ball valve is suitable for both potable and non-potable water applications. It comes with a lever handle that allows for easy operation, and it complies with various industry standards for safety and reliability.

Product Information

Standard Information

• Manufacturer: Conbraco
• Type: 2-Piece, Domestic, Straight

Technical Specifications

• Ball Material: C27451 Chrome Plated Brass
• Body Material: ASTM B584 C89836 Dezincification Resistant Bronze
• Nominal Size: 1 Inch x 1 Inch
• End Connection: Female Threaded x Female Threaded
• End to End Distance: 3.24 Inches
• Handle Material: Zinc Plated Steel Lever, White Vinyl Grip
• Seal Material: RPTFE
• Seat Material: RPTFE
• Vacuum Rating: 29 Inches Hg
• Inclusions/Features: ASTM B16 Brass Gland Nut, Adjustable Stem Packing, Blowoutproof Stem Design
• Applicable Standards: MSS-SP-110, IAPMO/ANSI Z1157, NSF/ANSI 61/372
