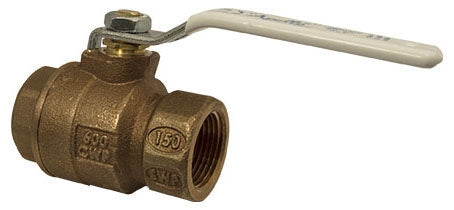

Conbraco 77CLF-103-27A 1/2 NPT x NPT 600 PSI CWP Ball Valve

Product Description

The Conbraco 77CLF-103-27A is a two-piece ball valve designed for plumbing applications. This valve features a nominal size of one half inch and offers both threaded ends for easy connection. It is built to withstand a pressure rating of six hundred PSI CWP and one hundred fifty PSI SWP, ensuring reliability during operation.

• Lead-free construction for safe water systems
• Full port design for improved flow
• Latch locking lever handle for easy operation

Product Highlights

This ball valve is ideal for commercial applications and adheres to various industry standards, including CUPC and NSF/ANSI, ensuring compliance and safety.

Product Information

Standard Information

• Manufacturer: Conbraco
• Nominal Size: 1/2 Inch

Technical Specifications

• MPN: 77CLF-103-27A
• Body Material: ASTM B584 C89836 DZR Bronze
• Ball Material: C27451 Chrome Plated Brass
• Temperature Rating: 450 Deg F
• Pressure Rating: 600 PSI CWP, 150 PSI SWP
• End Connection: Threaded x Threaded
• Seal Material: RPTFE
• Seat Material: RPTFE
• Port Type: Full
• Inclusions/Features: Blowout-proof stem, blue lead-free hang tag
• Applicable Standards: CUPC, NSF/ANSI 61/372
