Conbraco 77C-208-01A 2, Soldered x Soldered, 600 PSI CWP, 150 PSI SWP, Chrome Plated Brass Ball Valve

Product Description

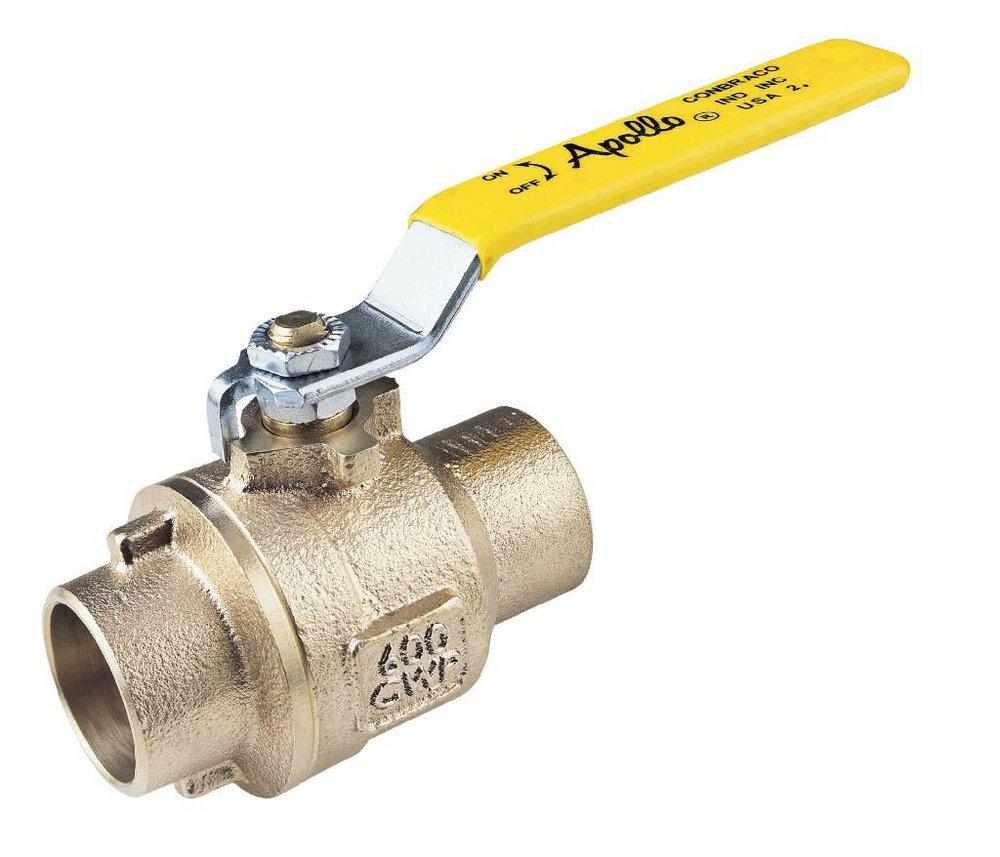

The Conbraco 77C-208-01A is a two-piece, full-port ball valve designed for various plumbing applications. This valve features a soldered x soldered end connection, with a nominal size of two inches. The body is made of bronze to ensure durability, and the ball is crafted from chrome-plated brass for enhanced flow performance.

• Pressure rating of six hundred PSI CWP.
• Temperature rating of up to four hundred fifty degrees Fahrenheit.
• Includes blowout-proof stem design for safety.

Product Highlights

This ball valve is suitable for both potable and non-potable water applications, making it versatile for commercial uses. The valve is compliant with applicable standards including MSS SP-110 and IAPMO/ANSI Z1157.

Product Information

Standard Information

• Brand: Conbraco
• MPN: 77C-208-01A

Technical Specifications

• End Connection: Soldered x Soldered
• Nominal Size: 2 inches
• Pressure Rating: 600 PSI CWP (Non-Shock), 150 PSI SWP
• Temperature Rating: 450 Degrees Fahrenheit
• Ball Material: ASTM B16/B283 C37700 Chrome Plated Brass
• Body Material: ASTM B584 Bronze
• Seal Material: RPTFE
• Seat Material: RPTFE
• Stem Material: ASTM B16 Brass
