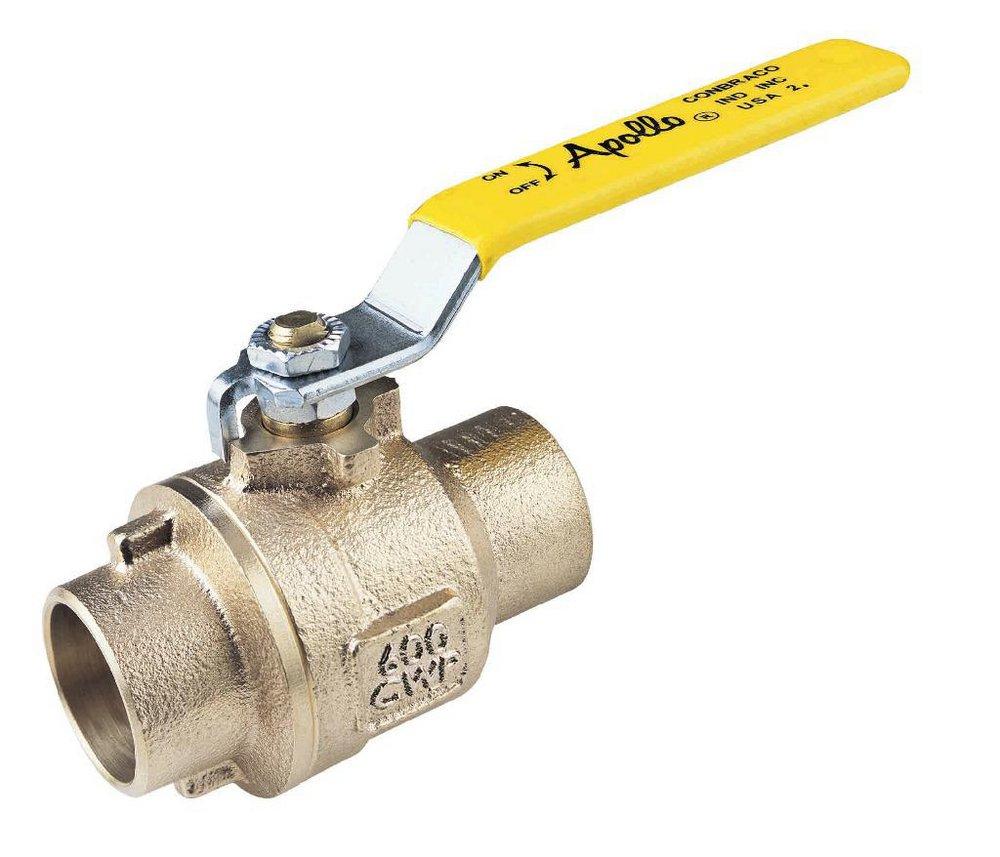

Conbraco 77C-206-01A 1-1/4 Soldered x Soldered 600 PSI CWP Ball Valve

Product Description

The Conbraco 77C-206-01A is a two-piece ball valve designed for plumbing applications. This valve features a soldered connection and is constructed with a dezincification resistant bronze body. It is rated for a maximum pressure of six hundred PSI CWP and one hundred fifty PSI SWP. With a nominal size of one and one-quarter inches, this valve ensures reliable flow control for various systems.

• Soldered connection for easy installation
• Adjustable stem packing for enhanced performance
• Blowout-proof stem design for safety

Product Highlights

This ball valve is suitable for commercial use and meets multiple industry standards. Its robust construction includes a chrome plated brass ball and RPTFE seat and seal materials.

Product Information

Standard Information

• Brand: Conbraco
• MPN: 77C-206-01A

Technical Specifications

• Nominal Size: 1-1/4 inch
• End Connection: Soldered x Soldered
• Length: 4.21 inches
• Ball Material: ASTM B16/B283 C37700 Chrome Plated Brass
• Body Material: ASTM B584 Dezincification Resistant Bronze
• Stem Material: ASTM B16 Brass
• Seat Material: RPTFE
• Seal Material: RPTFE
• Handle Material: Zinc Plated Steel Lever, Vinyl Grip
• Port Type: Full
• Temperature Rating: 450 Degrees F
• Pressure Rating: 600 PSI CWP (Non-Shock), 150 PSI SWP
• Application: Commercial
• Applicable Standard: MSS SP-110, IAPMO/ANSI Z1157, ISO 9001
• Vacuum Service: to 29 Inches HG
