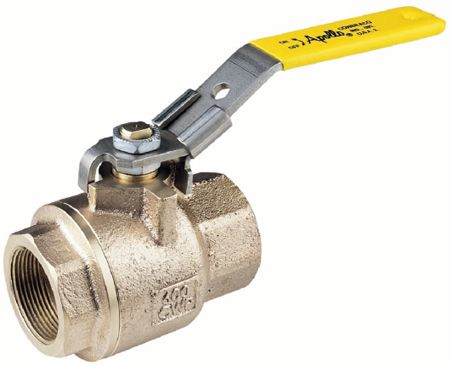

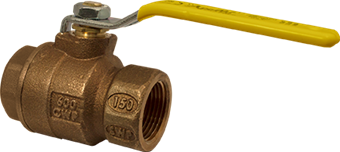

Conbraco 77C-105-01 Brz Fp Ball Valve 1 IN

Product Description

The CONBRACO 77C-105-01 is a 2-Piece Full-Port Standard Ball Valve. It features a lever handle operator and is compliant with MSS-SP-110 standards. The valve has a 1 IN nominal size and FNPT connection type. Constructed with a bronze body, it is designed for pressure ratings up to 600 PSI (CWP) and 150 PSI (SWP).

• 2-Piece Full-Port Standard Ball Valve
• Lever Handle Operator Type
• Compliant with MSS-SP-110 standards

Product Highlights

Full port ball valve with bronze body and lever handle, suitable for various applications requiring reliable flow control.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 77C-105-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 77C-100
• Nominal Size: 1 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: Up To 500 DEG F
• Opening: 1 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Zinc Plated Steel w/ Vinyl Grip
• Stem Material: B16 Brass
• Trim Material: Brass Ball
• Packing Material: MPTFE, Brass Gland
• Seat Material: RPTFE
• Seal Material: MPTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball, Stem And Gland): ASTM B16
• Body Material Specification: UNS C84400
• Handle Finish/Color: Zinc Plated
• Ball Finish/Color: Chrome Plated
• Industry Standards: MSS-SP-110 Compliant
• CRN: OC10908.5C
• Width: 3.07 IN
• Lead Free: No
• Inlet Center To Top Of Handle: 2.19 IN
• Handle Length: 4.88 IN
• Flow Co-Efficient (Cv): 68
• Body Style: 2 Piece
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Porting Style: Full Port
• Standards Met: MSS SP-110 Compliant, CRN: OC10908.5C, IAPMO/ANSI Z1157-2014e1
• Flow Direction: 2-Way
• Body Seal Material: RPTFE
• Stem Seal Material: RPTFE
• Valve Body Material: Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Maximum Operating Temperature: 450 °F
• Flow Coefficient Cv Flow Factor Kv: 68 Cv
• Model: 77C
• Valve Connection: NPT
• Piping Configuration: Straight
• Valve Application: Gas, Oil, Steam, Water
• Max Pressure: 150 psi WSP, 600 psi WOG
• DN1: 1"
• l1: 1.63
• z1: 0.97
• d2: 1.32
• DN2: 1"
• l2: 1.62
• z2: 0.96
• M1: 0.67
• M2: 4.76
• E: 0.83
• Y: 0.68
• V: 1.56
• U: 0.87
• D1: 1.72
• materials: bronze (ASTM B584-C84400)
• finishing: none
• shape: straight
• connection type: FPT - female thread conical (NPT)
• sealing: PTFE
• Bore (Full bore): 25.4 mm (Yes)
• product group: valves (ball valves)
• ETIM class: EC011343 Ball valve
• country of origin: United States
• brand: Apollo
• series: 77C Series Ball Valves
• product type: 77C10X01A
• unsps: 40141607
• article: Apollo Bronze 2 Piece Full Port Ball Valve with Standard Configuration 1" (2 x FNPT)
• article number with gtin: 77C10501A (00670750350450)
• product number with gtin: 77C10501A (00670750350450)
• manufacturer: Aalberts integrated piping systems Americas, Inc. (Apollo)
• item group: 77C10X01A - Apollo Bronze 2 Piece Full Port Ball Valve with Standard Configuration (2 x FNPT)
• size: 1"
• max operating pressure liquid: 600 psi
• Housing material: Bronze
• Surface protection housing: None
• Material ball: Brass
• Material spindle: Brass
• Material primary spindle seal: Polytetrafluoroethylene (PTFE)
• Nominal diameter connection 1: DN 25
• Outer pipe diameter connection 1: 33.4mm
• Outer pipe diameter connection 1 (imperial): 1.32"
• Connection 1: Internal thread conical (NPT)
• Nominal diameter connection 2: DN 25
• Outer pipe diameter connection 2: 33.4mm
• Outer pipe diameter connection 2 (imperial): 1.32"
• Connection 2: Internal thread conical (NPT)
• Housing construction: 2-part
• Full bore: Yes
• Length of connection 1: 41.4mm
• Length of connection 1 (imperial): 1.63"
• Working length connection 1: 24.64mm
• Working length connection 1 (imperial): 0.97"
• Length of connection 2: 41.15mm
• Length of connection 2 (imperial): 1.62"
• Working length connection 2: 24.38mm
• Working length connection 2 (imperial): 0.96"
• Handle height: 17.27mm
• Handle height (imperial): 0.68"
• Handgrip length: 17.02mm
• Handgrip length (imperial): 0.67"
