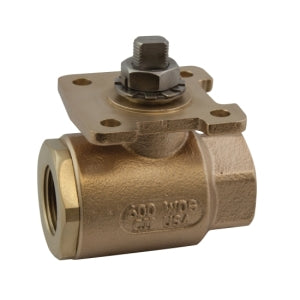

Conbraco 77-AR1-64 1/4 Brz Fp Ball Valve

Product Description

The CONBRACO 77-AR1-64 is a full-port ball valve from the Series 77-AR. It features a 1/4 IN nominal size and FNPT connection type. Designed with a bronze body and 316 stainless steel stem, this valve is suitable for applications requiring a pressure rating of 600 PSI (CWP) and 250 PSI (SWP). It can withstand temperatures up to 500 DEG F.

• Full-Port design
• Bronze body material
• 316 Stainless Steel stem material

Product Highlights

This ball valve is suitable for various applications with its full-port design and durable construction.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 77-AR1-64

Technical Specifications

• Series/Model: Series 77-AR
• Nominal Size: 1/4 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 250 PSI (SWP)
• Temperature Rating: Up To 500 DEG F
• Opening: 0.37 IN
• Body Material: Bronze
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Ball
• Packing Material: MPTF Stem, Brass Gland
• Seat Material: MPTFE
• Seal Material: PTFE
• Material Standard Body: ASTM B584
• Material Standard Stem: ASTM A276
• Material Standard Gland: ASTM B16
• Body Material Specification: UNS C84400
• Industry Standards: MSS-SP-110 Compliant
• Width: 2-1/4 IN
• Lead Free: No
• Other Physical Dimension: 1.4 IN Inlet Center To Top Of Handle
• Flow Co-Efficient (Cv): 8.1
• Port Type: Full
• Softgoods Material: PTFE/MPTFE
• Ball Material: Stainless Steel
• Inlet to Outlet Length: 2-1/4 in
• Type: 2-Piece
