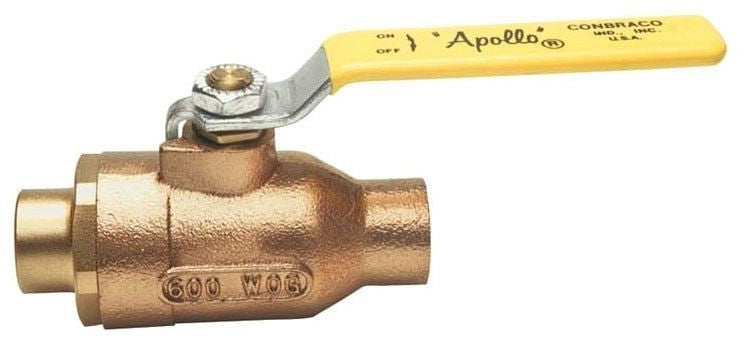

Conbraco 77-207-01 1-1/2 Brz C X C Fp Ball Valve

Product Description

The CONBRACO 77-207-01 is a 2-Piece Full-Port In-Line Standard Ball Valve from the Series 77-200. This valve features a bronze body and a lever handle operator. Designed for solder connection with a pressure rating of 600 PSI (CWP) and 150 PSI (SWP). It is suitable for use in gas and water media applications.

• 2-Piece Full-Port In-Line Standard Ball Valve
• Lever Handle Operator
• Bronze Body Material

Product Highlights

Full port ball valve with bronze body, lever handle, and solder connection.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 77-207-01
• Country of Origin: USA

Technical Specifications

• Series/Model: Series 77-200
• Nominal Size: 1-1/2 IN
• Connection Type: Solder
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: Up To 500 DEG F
• Opening: 1-1/2 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball And Stem): ASTM B16
• Material Specification (Body): UNS C84400
• Finish/Color: Zinc Plated Handle, Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant
• Width: 6 IN
• Lead Free: No
• Other Physical Dimension: 3.34 IN Inlet Center To Top Of Handle, 8 IN Handle Length
• Flow Co-Efficient (Cv): 177
• Actuator Type: Lever
• Ball Material: Brass
• Configuration: Standard
• Domestic/Import: Domestic
• Inlet to Outlet Length: 6 in
• Lead-Free/Contains Lead: Contains Lead
• Material Standard: ASTM B584-C84400, ASTM B16
• Media: Gas, Water
• Orifice Size: 1-1/2 in
• Seal Material: PTFE
• Top to Inlet Center: 3.34 in
• Connection: Sweat
• CWP: 600
• Material: Bronze
• Pieces: 2
• Port: Full Port
• Size: 1-1/2 in
• Type: Sweat
• Opening Size: 1-1/2 IN
• Material Specification: Body: UNS C84400
• Additional Specifications: Flow Co-Efficient (Cv): 177
