Conbraco 77-205-01 1 Brz C X C Fp Ball Valve 1 IN

Product Description

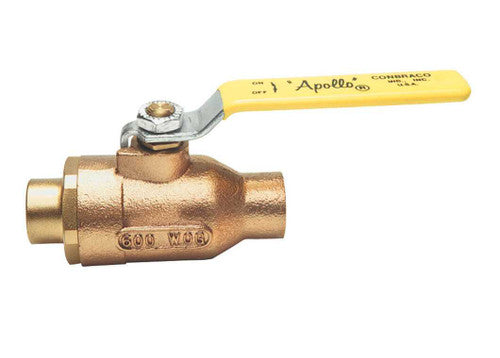

The CONBRACO 77-205-01 is a 2-Piece Full-Port In-Line Standard Ball Valve with a nominal size of 1 IN. It features a bronze body, a lever handle operator, and a steel handle with a vinyl grip. The valve is designed for solder connection with a pressure rating of 600 PSI (CWP) and 150 PSI (SWP).

• 2-Piece Full-Port In-Line Standard Ball Valve
• Lever Handle Operator
• Steel Handle with Vinyl Grip

Product Highlights

This ball valve is suitable for various applications requiring reliable flow control with a full port design to minimize pressure drop.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 77-205-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 77-200
• Nominal Size: 1 IN
• Connection Type: Solder
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: Up To 500 DEG F
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Material Standard: Body: ASTM B584, Ball And Stem: ASTM B16
• Material Specification: Body: UNS C84400
• Finish/Color: Zinc Plated Handle, Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant
• Width: 4.6 IN
• Lead Free: No
• Inlet Center To Top Of Handle: 2.62 IN
• Handle Length: 5-1/2 IN
• Flow Co-Efficient (Cv): 68
• Ball Material: B16 Brass Chrome Plated
• End Connection: Solder End
• Design Type: 2-Piece
• Port: Full Port
• Stem Design: Blowout Proof
• Actuator Type: Lever
• Domestic/Import: Domestic
• Inlet to Outlet Length: 4.64 in
• Media: Gas, Water
• Orifice Size: 1 in
• Seal Material: PTFE
• Top to Inlet Center: 2.62 in
