Conbraco 77-106-01 1-1/4 Fp Brass Ball Valve

Product Description

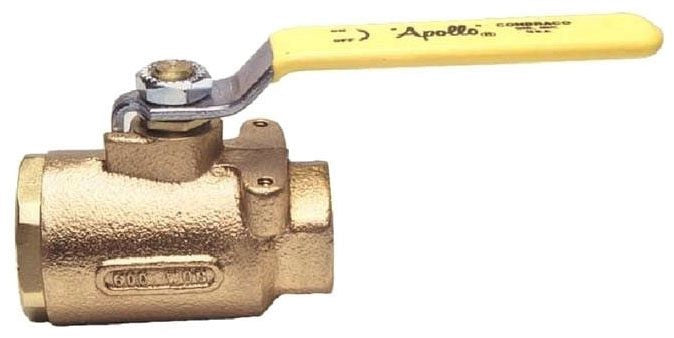

The CONBRACO 77-106-01 is a 2-piece full-port in-line standard ball valve from the Series 77-100. It features a 1-1/4 IN nominal size and FNPT connection type. Designed with a bronze body, brass stem and a steel lever handle with vinyl grip. Suitable for applications requiring a 600 PSI (CWP) pressure rating and temperatures up to 500 DEG F.

• Full port design for maximum flow
• RPTFE seats and packing for reliable sealing
• Lever handle for easy manual operation

Product Highlights

This ball valve is ideal for various applications, providing reliable shutoff and flow control.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 77-106-01
• Country of Origin: USA

Technical Specifications

• Series/Model: Series 77-100
• Nominal Size: 1-1/4 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: Up To 500 DEG F
• Opening: 1-1/4 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Stem and RPTFE Seat
• Packing Material: RPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard Body: ASTM B584
• Material Standard Ball: ASTM B16 Or ASTM B283
• Stem Material Standard: ASTM B16
• Body Material Specification: UNS C84400
• Ball Material Specification: UNS C37700
• Width: 4-1/4 IN
• Lead Free: No
• Other Physical Dimension: 2.87 IN Inlet Center To Top Of Handle, 5-1/2 IN Handle Length
• Flow Co-Efficient (Cv): 125
• Standards: MSS SP-110 Compliant
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Mounting Type: Inline Threaded
• Porting Style: Full Port
• Flow Direction: 2-Way
• Overall Length: 4.25 in
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Stem Seal Material: MPTFE
• Valve Body Material: Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Size: 1-1/4 in
• Type: Threaded
• Port Type: Full
• Actuator Type: Lever
• Inlet to Outlet Length: 4-1/4
• Manufacturer: Apollo Conbraco
• Manufacturer #: 77-106-01
• Top to Inlet Center: 2.87
• Softgoods Material: RPTFE
• End Style: FNPT
• Domestic / Import: Domestic
