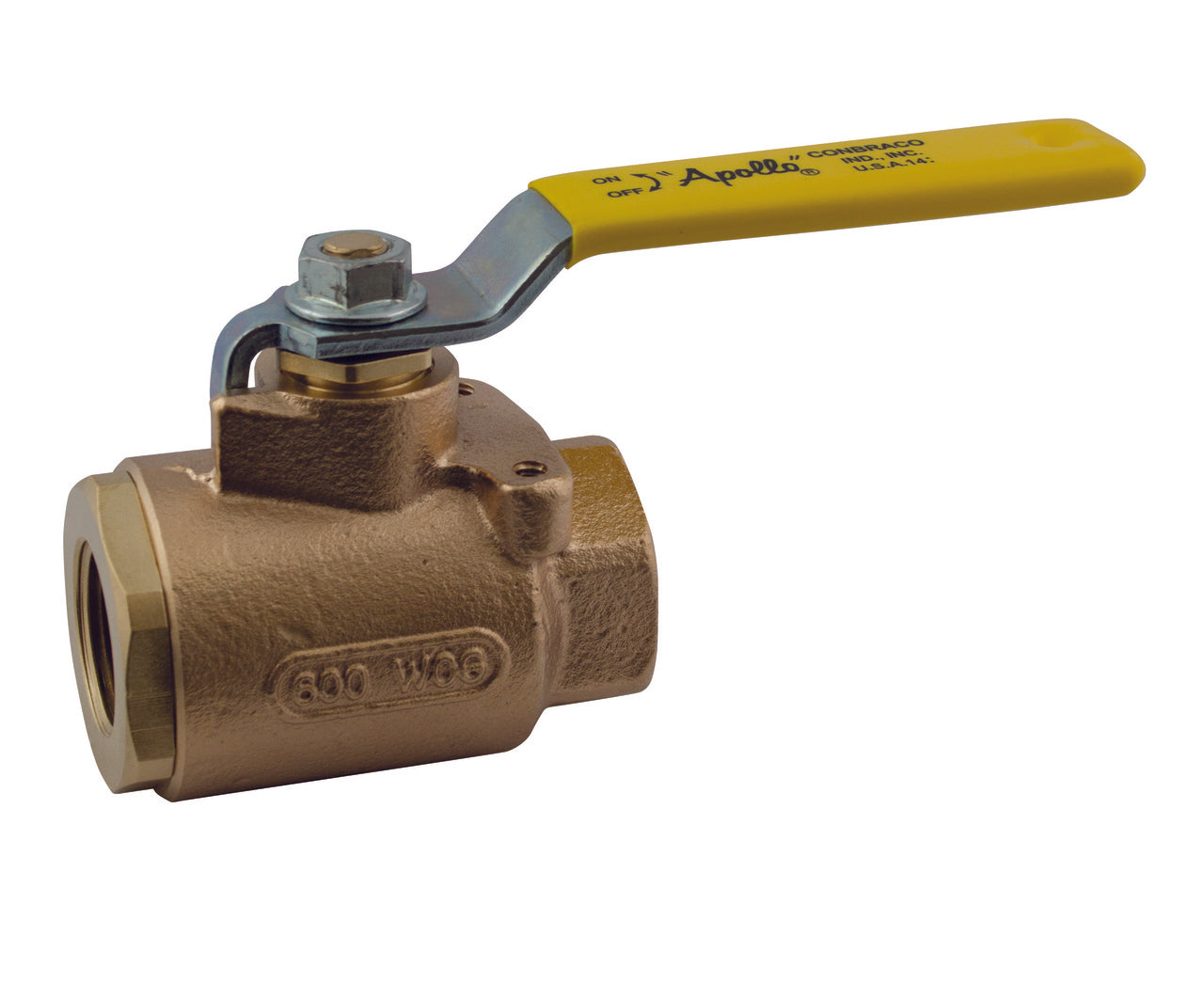

Conbraco 77-105-01 Brz Fp Ball Valve W/Mtg Pad 1 IN

Brand: CONBRACO
SKU: 77-105-01
Availability: In Stock

Ships same day if ordered by 12 pm
$106.00
$106.00
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The CONBRACO 77-105-01 is a 2-piece full-port in-line standard ball valve. It features a bronze body, lever handle, and FNPT connection. Designed for durability, it withstands pressure up to 600 PSI (CWP) and 150 PSI (SWP), with a temperature rating up to 500 DEG F. The valve is MSS-SP-110 compliant.

  • 2-Piece Full-Port In-Line Standard Ball Valve
  • Lever Handle Operator Type
  • Zinc Plated Handle, Chrome Plated Ball

Product Highlights

This bronze ball valve offers reliable performance with its robust construction and compliance with industry standards.

Product Information

Standard Information

  • Brand: CONBRACO
  • Manufacturer Part Number: 77-105-01
  • Country of Origin: USA
Technical Specifications
Series/Model
Series 77-100
Nominal Size
1 IN
Connection Type
FNPT
Pressure Rating
600 PSI (CWP), 150 PSI (SWP)
Temperature Rating
Up To 500 DEG F
Opening Size
1 IN
Body Material
Bronze
Operator Type
Lever Handle
Handle Material
Steel With Vinyl Grip
Stem Material
Brass
Trim Material
Brass Ball
Packing Material
RPTFE Stem
Seat Material
RPTFE
Seal Material
PTFE
Body Material Standard
ASTM B584
Ball Material Standard
ASTM B16 Or ASTM B283
Stem Material Standard
B16 Brass
Body Material Specification
UNS C84400
Ball Material Specification
UNS C37700
Industry Standards
MSS-SP-110 Compliant, WW-V-35C Federal Specification, CRN: OC10908.5C
Width
3.62 IN
Lead Free
No
Other Physical Dimension
2.62 IN Inlet Center To Top Of Handle, 5-1/2 IN Handle Length
Additional Specifications
Flow Co-Efficient (Cv): 68
Standards
MSS SP-110 Compliant
Body Style
2 Piece
Control Type
Manually Operated
Handle Style
Lever Handle
Ball Material
Chrome Plated Brass
Mounting Type
Inline Threaded
Overall Width
1.50 in
Porting Style
Full Port
Flow Direction
2-Way
Overall Length
3.62 in
O-Ring Material
PTFE
Connection Gender
Threaded
Stem Seal Material
MPTFE
Valve Body Material
Bronze
Media Pressure Rating
Cold Water - 600 psi, Steam - 150 psi
Maximum Operating Pressure
600 psi
Size
1 in
End Style
Threaded
Type
Ball Valve
Series
77-100
Option
Full Port
Manufacturer
Aalberts Integrated Piping Systems
Category
Ball Valves
