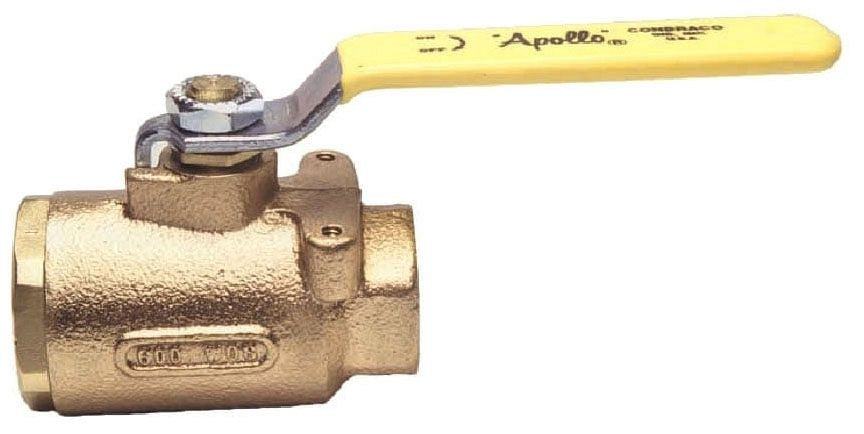

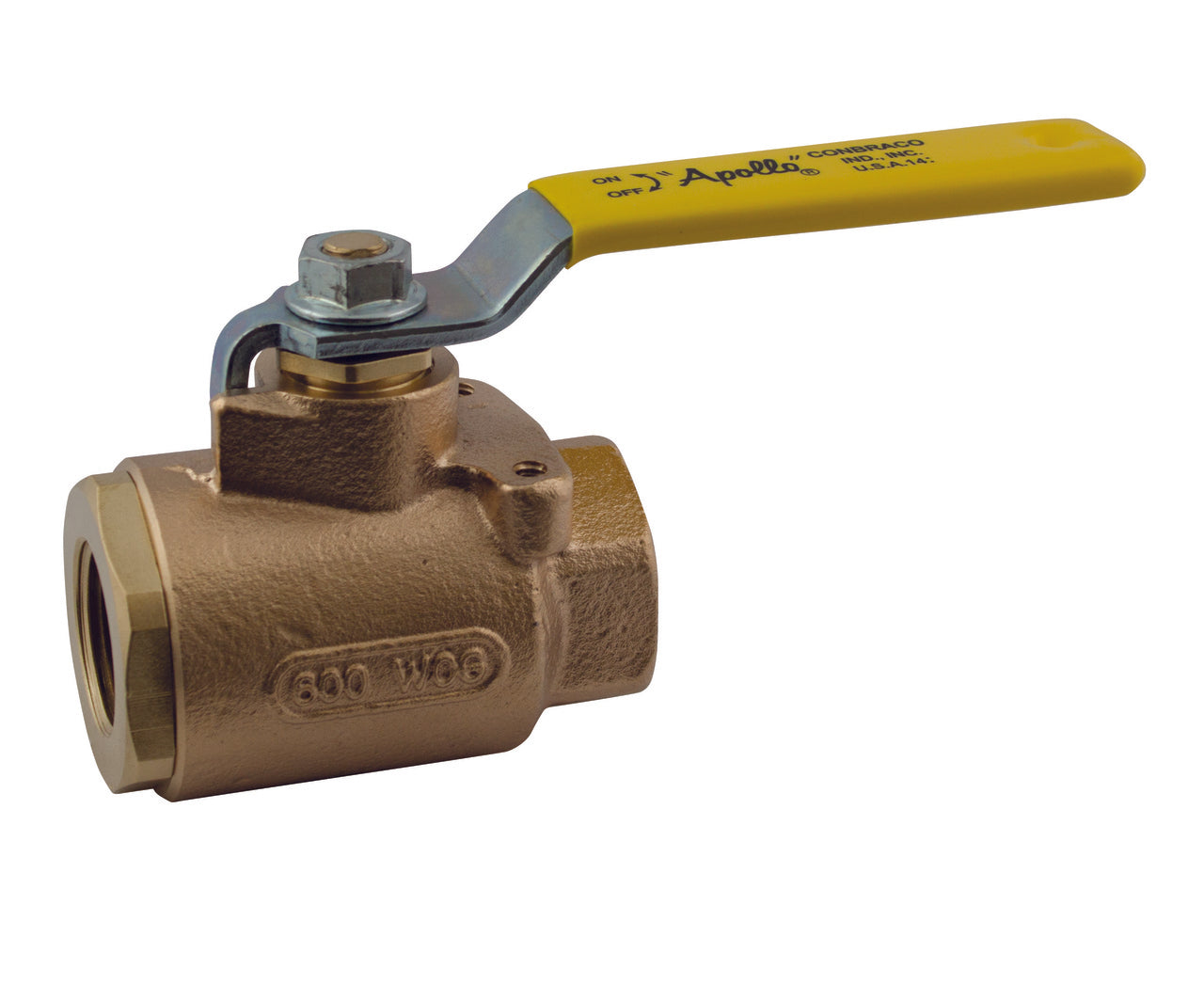

Conbraco 77-103-01 Ball Valve 1/2 IN

Product Description

The CONBRACO 77-103-01 is a 2-Piece Full-Port In-Line Standard Ball Valve. It has a nominal size of 1/2 IN and a FNPT connection type. The valve is pressure rated to 600 PSI (CWP) and 150 PSI (SWP), with a temperature rating up to 500 DEG F.

• 2-Piece Full-Port In-Line Standard Ball Valve
• Lever Handle Operator
• Steel Handle with Vinyl Grip

Product Highlights

This ball valve features a bronze body, brass stem, and RPTFE seat, suitable for various applications requiring reliable flow control.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 77-103-01
• Country of Origin: USA

Technical Specifications

• Series/Model: Series 77-100
• Nominal Size: 1/2 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: Up To 500 DEG F
• Opening: 1/2 IN
• Body Material: Bronze
• Handle Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: B16 Brass
• Trim Material: Brass Ball
• Packing Material: MPTFE
• Seat Material: RPTFE
• Seal Material: RPTFE
• Material Standard Body: ASTM B584
• Material Standard Ball: ASTM B16 Or ASTM B283
• Stem Material Standard: ASTM B16
• Body Material Specification: UNS C84400
• Ball Material Specification: UNS C37700
• Finish/Color: Zinc Plated Handle, Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant, WW-V-35C Federal Specification, CRN: OC10908.5C
• Width: 2.18 IN
• Lead Free: No
• Inlet Center To Top Of Handle: 1.81 IN
• Handle Length: 3.87 IN
• Flow Co-Efficient (Cv): 15
• Port Size: 1/2 NPT
• Standards: MSS SP-110 Compliant
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Mounting Type: Inline Threaded
• Overall Width: 1.12 in
• Porting Style: Full Port
• Flow Direction: 2-Way
• Overall Length: 2.18 in
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Stem Seal Material: MPTFE
• Valve Body Material: Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Actuator Type: Lever
• Configuration: Standard
• Domestic/Import: Domestic
• Material Standard: ASTM B584-C84400, ASTM B16
• Media: Gas, Water
• Orifice Size: 1/2 in
• Port Type: Full
• Softgoods Material: RPTFE
• Top to Inlet Center: 1.77 in
• End Style: FNPT
• Manufacturer: Aalberts Integrated Piping Systems
• Category: Ball Valves
• Pieces: 2
• Type: Threaded
