Conbraco 76F-108-27A 2 SS FP Thrd Ball Valve W/Latch Lock Lever

Product Description

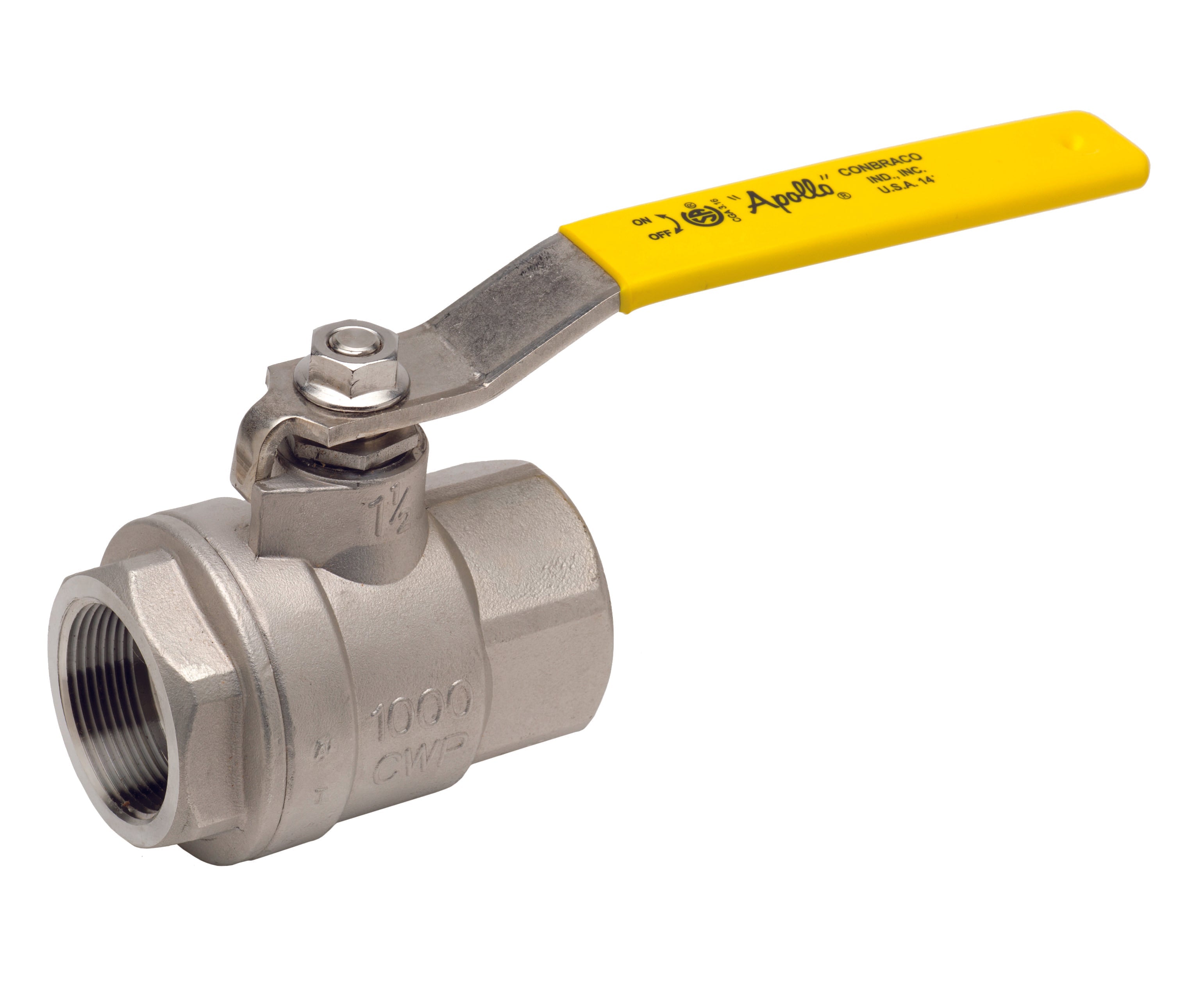

The CONBRACO 76F-108-27A is a full-port ball valve with a 2-inch nominal size and FNPT connection. Constructed with a stainless steel body and a latch-lock lever handle, this valve is designed for durability and ease of use. It has a pressure rating of 1000 PSI (CWP) and a temperature rating of 0 to 500 DEG F.

• Full-Port design
• Latch-Lock Lever Handle
• Stainless Steel Body Material

Product Highlights

This valve is MSS-SP-110 compliant, fire-tested to API 607, and meets NACE MR0175 (2000) and MR0103 (2012) standards.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 76F-108-27A
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 76F-100-A
• Nominal Size: 2 IN
• Connection Type: FNPT
• Pressure Rating: 1000 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: 0 - 500 DEG F
• Opening: 2 IN
• Body Material: Stainless Steel
• Handle Operator Type: Latch-Lock Lever
• Handle Material: Stainless Steel
• Stem Material: Stainless Steel
• Trim Material: 316 Stainless Steel Stem and RPTFE Seat
• Packing Material: RPTFE Stem, 316 Stainless Steel Gland
• Seat Material: RPTFE
• Seal Material: RPTFE
• Material Standard Body: ASTM A351 Grade CF8M
• Material Standard Stem And Gland: ASTM A276
• Material Standard Ball: ASTM A276
• Industry Standards: MSS-SP-110 Compliant, Fire tested API 607, 6th Edition, Meets NACE MR0175 (2000) And MR0103 (2012), CSA/CAN 3.16-M88 (2009), NSF/ANSI 61 (2010) Section 8, Annex F And G, NSF-372, Drinking Water System Components - Lead Content
• Width: 4.74 IN
• Lead Free: Yes
• Other Physical Dimension: 3.69 IN Inlet Center To Top Of Handle, 7.77 IN Handle Length
• Flow Co-Efficient (Cv): 389
• Housing material: Stainless steel
• Material ball: Stainless steel
• Material spindle: Stainless steel
• Material primary spindle seal: Polytetrafluoroethylene (PTFE)
• Nominal diameter connection 1: DN 50
• Outer pipe diameter connection 1: 60.33mm
• Outer pipe diameter connection 1 (imperial): 2.38"
• Connection 1: Internal thread conical (NPT)
• Nominal diameter connection 2: DN 50
• Outer pipe diameter connection 2: 60.33mm
• Outer pipe diameter connection 2 (imperial): 2.38"
• Connection 2: Internal thread conical (NPT)
• Operation: Lever handle
• Housing construction: 2-part
• Full bore: Yes
• Length of connection 1: 60.2mm
• Length of connection 1 (imperial): 2.37"
• Working length connection 1: 42.42mm
• Working length connection 1 (imperial): 1.67"
• Length of connection 2: 60.2mm
• Length of connection 2 (imperial): 2.37"
• Working length connection 2: 42.42mm
• Working length connection 2 (imperial): 1.67"
• Handle height: 38.61mm
• Handle height (imperial): 1.52"
• Handgrip length: 20.57mm
• Handgrip length (imperial): 0.81"
• End Style: Threaded
• Type: Ball Valve
• Option: SS Locking Handle
• Manufacturer: Aalberts Integrated Piping Systems
• Category: Ball Valves
• Domestic / Import: Domestic
• Port Type: Full
• Softgoods Material: RPTFE/MPTFE
• Actuator Type: Latch-Lock Lever
• Ball Material: 316 Stainless Steel
• Inlet to Outlet Length: 4.74
• Manufacturer #: 76F-108-27-A
• Top to Inlet Center: 3.69
