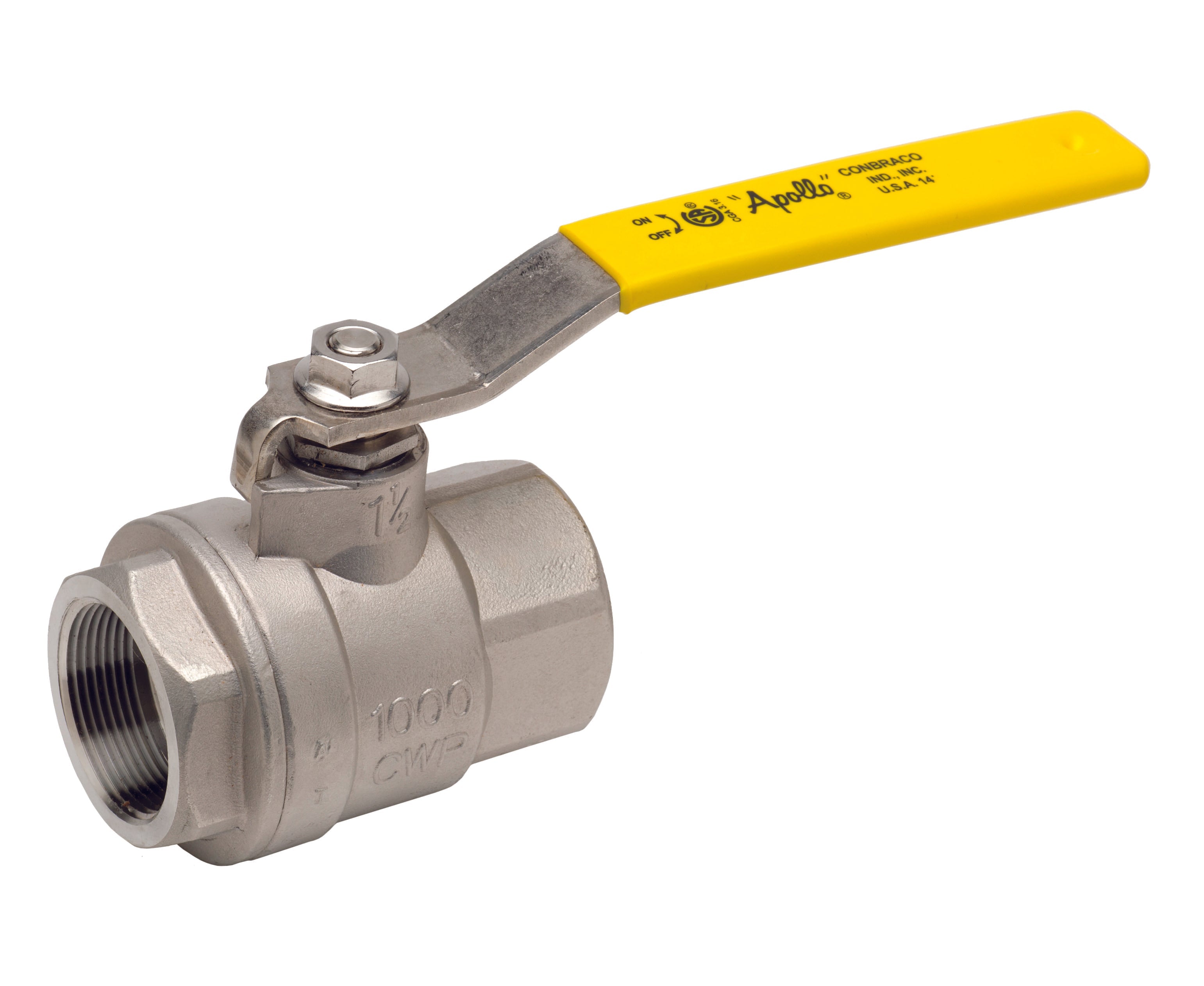

Conbraco 76F-103-27A 1/2 Ss Fp Thrd Ball Valve W/Latch Lock Lever

Product Description

The CONBRACO 76F-103-27A is a full-port ball valve with a latch-lock lever handle. It features a stainless steel body and a 1/2 inch nominal size with FNPT connection type. Designed with a pressure rating of 1000 PSI (CWP) and 150 PSI (SWP). Suitable for use with gas and water media. Meets industry standards MSS-SP-110 and is fire tested to API 607, 6th Edition.

• Full-Port Ball Valve
• Latch-Lock Lever Handle
• Investment cast components

Product Highlights

This ball valve features a stainless steel body, latch-lock lever handle, and is suitable for various media.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 76F-103-27A
• Country of Origin: USA

Technical Specifications

• Series/Model: Series 76F-100-A
• Nominal Size: 1/2 IN
• Connection Type: FNPT
• Pressure Rating: 150 psi
• Temperature Rating: 0 - 500 DEG F
• Opening Size: 1/2 IN
• Body Material: Stainless Steel
• Handle Operator Type: Latch-Lock Lever
• Handle Material: Stainless Steel
• Stem Material: 316 Stainless Steel
• Trim Material: Stainless Steel/RPTFE
• Packing Material: MPTFE
• Seat Material: RPTFE
• Seal Material: RPTFE
• Material Standard: Body: ASTM A351 Grade CF8M, Stem And Gland: ASTM A276, Ball: ASTM A276
• Industry Standards: MSS-SP-110 Compliant, Fire tested API 607, 6th Edition, Meets NACE MR0175 (2000) And MR0103 (2012), CSA/CAN 3.16-M88 (2009), NSF/ANSI 61 (2010) Section 8, Annex F And G, NSF-372, Drinking Water System Components - Lead Content
• Width: 2.35 IN
• Lead Free: Yes
• Other Physical Dimension: 1.73 IN Inlet Center To Top Of Handle, 3.85 IN Handle Length
• Flow Co-Efficient (Cv): 15
• Size: 1/2 in
• Type: Ball Valve
• Series: 76F-100
• Option: SS Locking Handle
• Manufacturer: Aalberts Integrated Piping Systems
• Category: Ball Valves
• d1: 0.84
• DN1: 1/2"
• l1: 1.21
• z1: 0.68
• d2: 0.84
• DN2: 1/2"
• l2: 1.15
• z2: 0.62
• M1: 0.38
• M2: 4.15
• E: 0.68
• Y: 0.89
• V: 1.09
• U: 0.75
• D1: 1.15
• materials: stainless steel (ASTM A351 CF8M)
• finishing: none
• shape: straight
• Bore (Full bore): 12.7 mm (Yes)
• product group: valves (ball valves)
• ETIM class: EC011343 Ball valve
• Housing material: Stainless steel
• Surface protection housing: None
• Material ball: Stainless steel
• Material spindle: Stainless steel
• Material primary spindle seal: Polytetrafluoroethylene (PTFE)
• Nominal diameter connection 1: DN 15
• Outer pipe diameter connection 1: 21.34mm
• Outer pipe diameter connection 1 (imperial): 0.84"
• Connection 1: Internal thread conical (NPT)
• With coupling connection 1: No
• Nominal diameter connection 2: DN 15
• Outer pipe diameter connection 2: 21.34mm
• Outer pipe diameter connection 2 (imperial): 0.84"
• Connection 2: Internal thread conical (NPT)
• With coupling connection 2: No
• With filter: No
• FM quality mark: No
• UL quality mark: No
• ULC quality mark: No
• LPCB quality mark: No
• Medically clean: No
• Grease-free: No
• Operation: Lever handle
• Housing construction: 2-part
• Full bore: Yes
• Length of connection 1: 30.73mm
• Length of connection 1 (imperial): 1.21"
• Working length connection 1: 17.27mm
• Working length connection 1 (imperial): 0.68"
• Length of connection 2: 29.21mm
• Length of connection 2 (imperial): 1.15"
• Working length connection 2: 15.75mm
• Working length connection 2 (imperial): 0.62"
• Handle height: 22.61mm
• Handle height (imperial): 0.89"
• Handgrip length: 9.65mm
• Handgrip length (imperial): 0.38"
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• Actuator Type: Latch-Lock Lever
• Ball Material: 316 Stainless Steel
• Domestic/Import: Domestic
• Inlet to Outlet Length: 2.35 in
• Port Type: Full
• Softgoods Material: MPTFE/RPTFE
• Top to Inlet Center: 1.73 in
• 2-Piece: 2-Piece
• Media: Gas, Water
• Orifice Size: 1/2 in
• Gland Material: 316 Stainless Steel
• Weight: 0.570 LB
• End Style: FNPT
