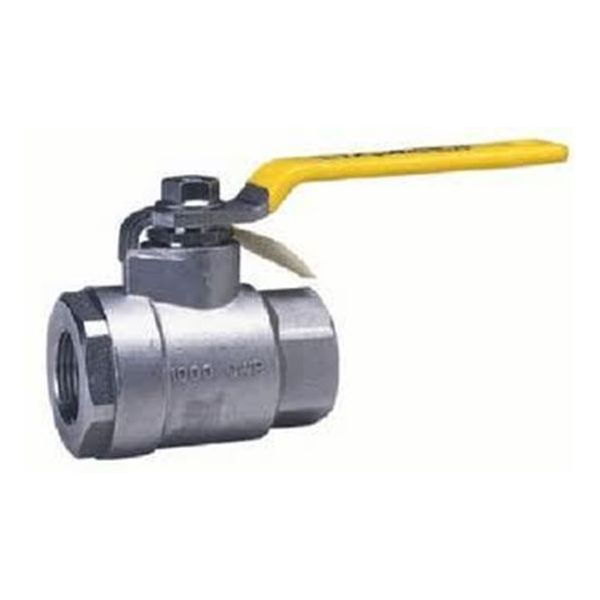

Conbraco 76F-102-01 3/8 SS FP Ball Valve

Product Description

The CONBRACO 76F-102-01 is a full-port standard ball valve from the 76F-100 series with a 3/8 IN nominal size and FNPT connection type. Constructed with a stainless steel body and 316 stainless steel ball, it offers a pressure rating of 1000 PSI (CWP) and 150 PSI (SWP). Suitable for various applications, it meets MSS-SP-110 standards and is lead-free.

• Full-Port
• Standard Ball Valve
• Lead Free

Product Highlights

This full-port ball valve features stainless steel construction, RPTFE seats and seals, and a lever handle for easy operation.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 76F-102-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 76F-100
• Nominal Size: 3/8 IN
• Connection Type: FNPT
• Pressure Rating: 1000 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: 0 - 500 DEG F
• Opening: 0.37 IN
• Body Material: Stainless Steel
• Handle Operator Type: Lever Handle
• Handle Material: Stainless Steel With Vinyl Grip
• Stem Material: Stainless Steel
• Trim Material: 316 Stainless Steel Ball
• Packing Material: MPTFE
• Seat Material: RPTFE
• Seal Material: RPTFE
• Material Standard (Body): ASTM A351 Grade CF8M
• Material Standard (Stem And Gland): ASTM A276
• Material Standard (Ball): ASTM A276
• Industry Standards: MSS-SP-110 Compliant, Fire tested API 607, 6th Edition, Meets NACE MR0175 (2000) And MR0103 (2012), CSA/CAN 3.16-M88 (2009), NSF/ANSI 61 (2010) Section 8, Annex F And G, NSF-372, Drinking Water System Components - Lead Content
• Width: 1.91 IN
• Lead Free: Yes
• Other Physical Dimension: 1.6 IN Inlet Center To Top Of Handle, 3.85 IN Handle Length
• Flow Co-Efficient (Cv): 15
• Actuator Type: Lever
• Ball Material: 316 Stainless Steel
• Configuration: Standard
• Media: Gas, Water
• Orifice Size: 0.37 in
• Port Type: Full
• Top to Inlet Center: 0.95 in
