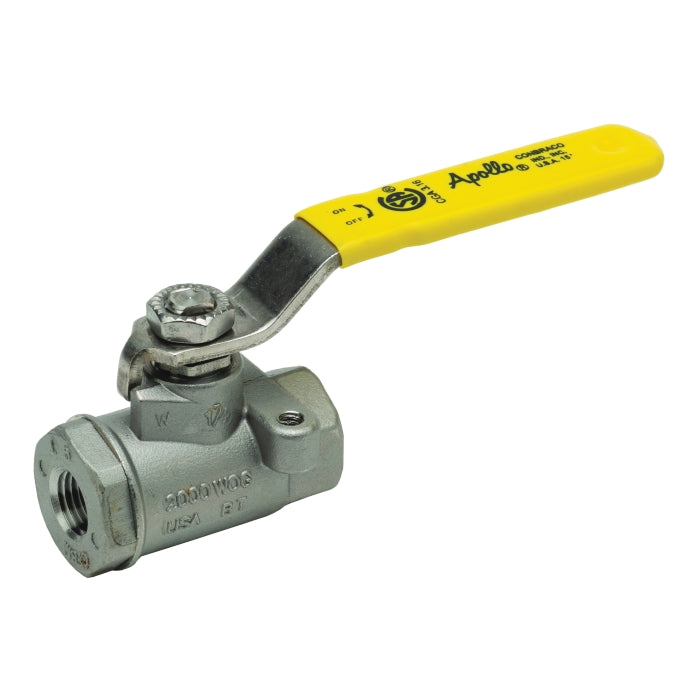

Conbraco 76-104-01A Apollo® 2-Way Ball Valve - Lever

Product Description

The Conbraco 76-104-01A is a two-way ball valve designed for reliable control in plumbing and hydraulic systems. This 3/4 inch valve features a stainless steel construction and a lever handle for easy operation.

• Investment cast components for durability.
• Mounting pad included for easy actuator installation.
• Lead-free certified for safe use with drinking water systems.

Product Highlights

This valve supports vacuum service up to twenty-nine inches of mercury and incorporates a blow-out-proof stem design.

Product Information

Standard Information

• Brand: Conbraco
• MPN: 76-104-01A

Technical Specifications

• Weight: 1.27 lbs
• Connection Type: Threaded
• Valve Size: 3/4 NPT
• Ball Material: 316 Stainless Steel
• Stem Material: 316 Stainless Steel
• Body Material: ASTM A351-CF8M Stainless Steel
• Media Pressure Rating: Steam - 150 psi, Cold Water - 2000 psi
• Flow Coefficient: 30 Cv
• Standards Met: MSS SP-110, NACE MR0175, NSF/ANSI 372
