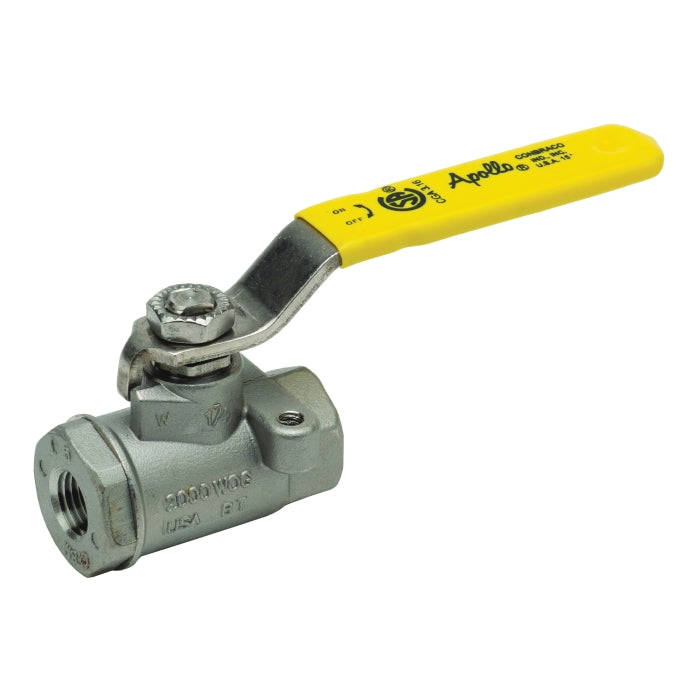

Conbraco 76-103-01A Apollo Ball Valve - 1/2 NPT Port

Product Description

The Conbraco Apollo Ball Valve 76-103-01A features a half-inch NPT port and is designed for use in various hydraulic applications. This valve is constructed with durable materials ensuring reliability and performance in demanding environments.

• Investment cast components for increased strength.
• Reinforced seats enhance durability under pressure.
• Mounting pad simplifies actuator installation.

Product Highlights

This valve suits cold water systems up to 2000 psi and steam systems up to 150 psi, providing versatility in fluid control.

Product Information

Standard Information

• Brand: Conbraco
• MPN: 76-103-01A

Technical Specifications

• Port Size: 1/2 NPT
• Actuator Type: Lever
• Ball Material: 316 Stainless Steel
• Seal Material: RPTFE
• Seat Material: RPTFE
• Stem Material: 316 Stainless Steel
• Valve Body Material: Stainless Steel
• Media Pressure Rating: Cold Water - 2000 psi, Steam - 150 psi
• Flow Coefficient (Cv): 15 Cv
• Standards Met: MSS SP-110 Compliant, Meets NACE MR0175 & MR0103
