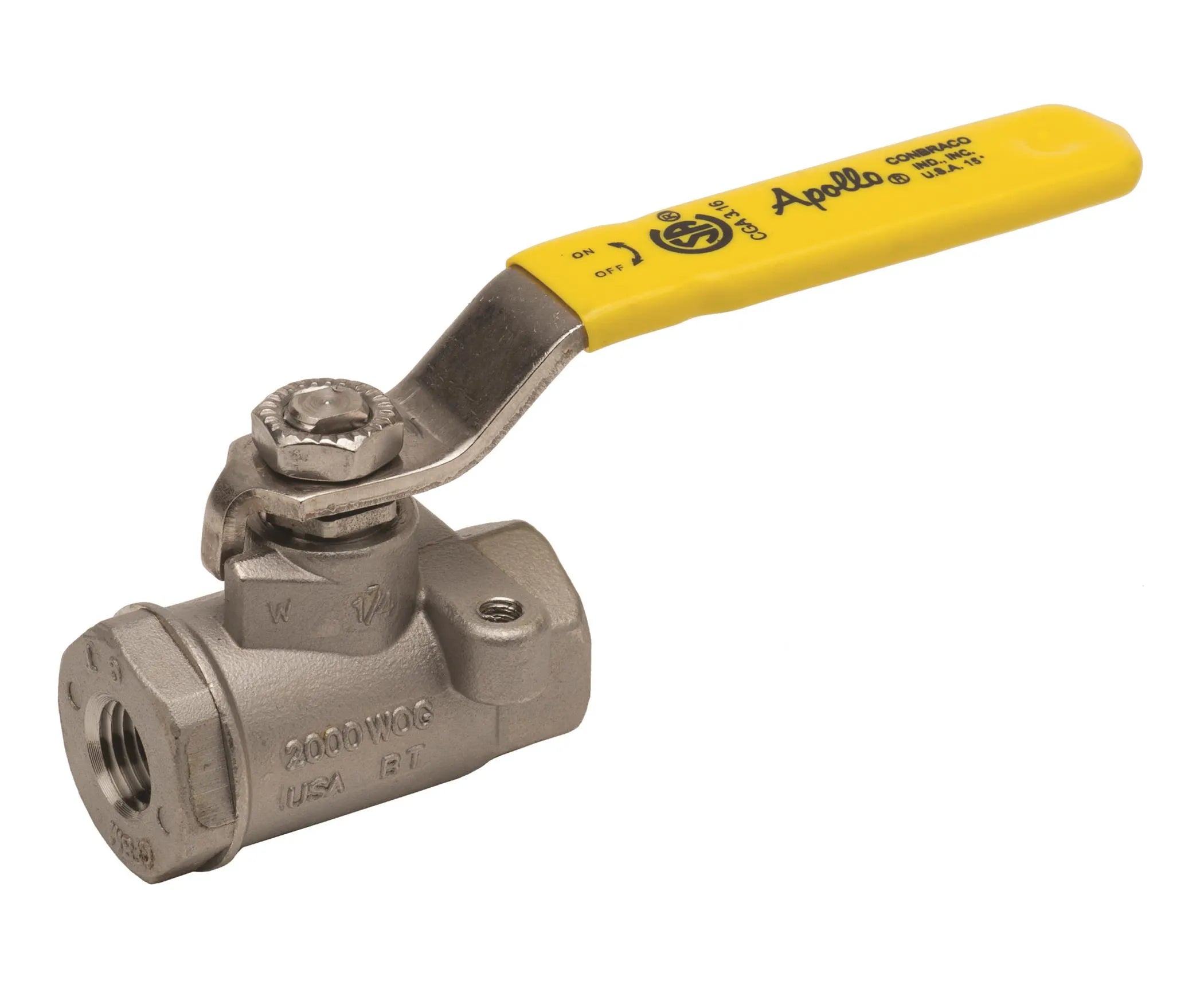

Conbraco 76-102-14A 3/8 SS Thrd Ball Valve W/Mtg Pad

Product Description

The CONBRACO 76-102-14A is a 3/8 inch nominal size ball valve with a side-vented ball design. Constructed with a stainless steel body and a lever handle operator, it features FNPT connection type and is pressure rated to 2000 PSI (CWP) and 150 PSI (SWP). Suitable for temperatures up to 450 DEG F, this valve is MSS-SP-110 compliant and fire-tested to API 607, 6th Edition.

• Ball Valve With Side Vented Ball
• Stainless Steel Body Material
• Lever Handle Operator Type

Product Highlights

This 3/8 inch stainless steel ball valve features a side-vented ball, lever handle, and is suitable for high-pressure and high-temperature applications.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 76-102-14A
• Country of Origin: US

Technical Specifications

• Nominal Size: 3/8 IN
• Connection Type: FNPT
• Pressure Rating: 2000 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: Up To 450 DEG F
• Opening: 0.37 IN
• Body Material: Stainless Steel
• Operator Type: Lever Handle
• Handle Material: 304 Stainless Steel With Vinyl Grip
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Ball
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard (Body): ASTM A351 Grade CF8M
• Material Standard (Ball And Stem): ASTM A276
• Industry Standards: MSS-SP-110 Compliant, Fire tested API 607, 6th Edition, Meets NACE MR0175 (2000) And MR0103 (2012), CSA/CAN 3.16-M88 (2009), NSF/ANSI 61 (2010) Section 8, Annex F And G, NSF-372, Drinking Water System Components - Lead Content
• Width: 2.05 IN
• Lead Free: No
• Other Physical Dimension: 1.71 IN Inlet Center To Top Of Handle, 3.85 IN Handle Length
• Flow Co-Efficient (Cv): 7.2
• Item: Ball Valve
• Bore Type: Reduced Bore
• Series: 76 Series
• Shape: Straight
• Spindle Material: Stainless Steel
• Surface Protection: None
