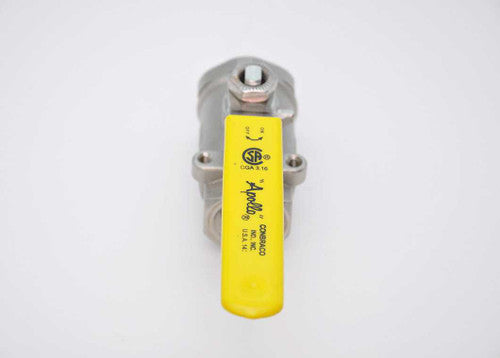

Conbraco 76-102-01A 3/8 ss Ball Valve

Brand: CONBRACO
SKU: 76-102-01A
Availability: In Stock

Ships same day if ordered by 12 pm
$95.97
$95.97
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The CONBRACO 76-102-01A is a standard 3/8" stainless steel ball valve from the Series 76-100. This valve features a stainless steel body and a lever handle operator. It is designed with a 0.37 IN opening and FNPT connection type. Suitable for applications requiring compliance with MSS-SP-110 and NACE MR0175/MR0103 standards.

  • Standard Ball Valve
  • Stainless Steel Body
  • Lever Handle Operator
  • Meets NACE MR0175 (2000) And MR0103 (2012)
  • NSF/ANSI 61 (2010) Section 8, Annex F And G, NSF-372, Drinking Water System Components - Lead Content

Product Highlights

This 3/8" ball valve features a stainless steel body, lever handle, and meets industry standards for material and safety.

Product Information

Standard Information

  • Brand: CONBRACO
  • Manufacturer Part Number: 76-102-01A
  • Country of Origin: United States
Technical Specifications
Series/Model
Series 76-100
Nominal Size
3/8 IN
Connection Type
FNPT
Pressure Rating
2000 PSI (CWP), 150 PSI (SWP)
Temperature Rating
Up To 450 DEG F
Opening
0.37 IN
Body Material
Stainless Steel
Operator Type
Lever Handle
Handle Material
304 Stainless Steel With Vinyl Grip
Stem Material
316 Stainless Steel
Trim Material
316 Stainless Steel Ball
Packing Material
MPTFE Stem
Seat Material
RPTFE
Seal Material
PTFE
Material Standard (Body)
ASTM A351 Grade CF8M
Material Standard (Ball And Stem)
ASTM A276
Industry Standards
MSS-SP-110 Compliant, Fire tested API 607, 6th Edition, Meets NACE MR0175 (2000) And MR0103 (2012), CSA/CAN 3.16-M88 (2009), NSF/ANSI 61 (2010) Section 8, Annex F And G, NSF-372, Drinking Water System Components - Lead Content
Width
2.05 IN
Lead Free
No
Other Physical Dimension
1.71 IN Inlet Center To Top Of Handle, 3.85 IN Handle Length
Flow Co-Efficient (Cv)
7.2
Standards
MSS SP-110 Compliant
Body Style
2 Piece
Control Type
Manually Operated
Handle Style
Lever Handle
Ball Material
A276-316 Stainless Steel
Mounting Type
Inline Threaded
Porting Style
Standard Port
Flow Direction
2-Way
Overall Length
2.05 in
O-Ring Material
PTFE
Connection Gender
Threaded
Stem Seal Material
MPTFE
Valve Body Material
CF8M Stainless Steel
Media Pressure Rating
Steam - 150 psi, Cold Water - 2000 psi
Maximum Operating Pressure
2000 psi
Port Size
3/8 NPT
Housing material
Stainless steel
Material ball
Stainless steel
Material spindle
Stainless steel
Material primary spindle seal
Polytetrafluoroethylene (PTFE)
Nominal diameter connection 1
DN 10
Outer pipe diameter connection 1
17.15mm
Outer pipe diameter connection 1 (imperial)
0.68"
Connection 1
Internal thread conical (NPT)
Nominal diameter connection 2
DN 10
Outer pipe diameter connection 2
17.15mm
Outer pipe diameter connection 2 (imperial)
0.68"
Connection 2
Internal thread conical (NPT)
With filter
No
FM quality mark
No
UL quality mark
No
ULC quality mark
No
LPCB quality mark
No
Medically clean
No
Grease-free
No
Housing construction
2-part
Full bore
No
Length of connection 1
26.42mm
Length of connection 1 (imperial)
1.04"
Working length connection 1
16.26mm
Working length connection 1 (imperial)
0.64"
Length of connection 2
26.16mm
Length of connection 2 (imperial)
1.03"
Working length connection 2
16mm
Working length connection 2 (imperial)
0.63"
Handle height
16.51mm
Handle height (imperial)
0.65"
Handgrip length
13.97mm
Handgrip length (imperial)
0.55"
VdS quality mark
No
DVGW quality mark for gas
No
DVGW quality mark for water
No
KIWA certified
No
