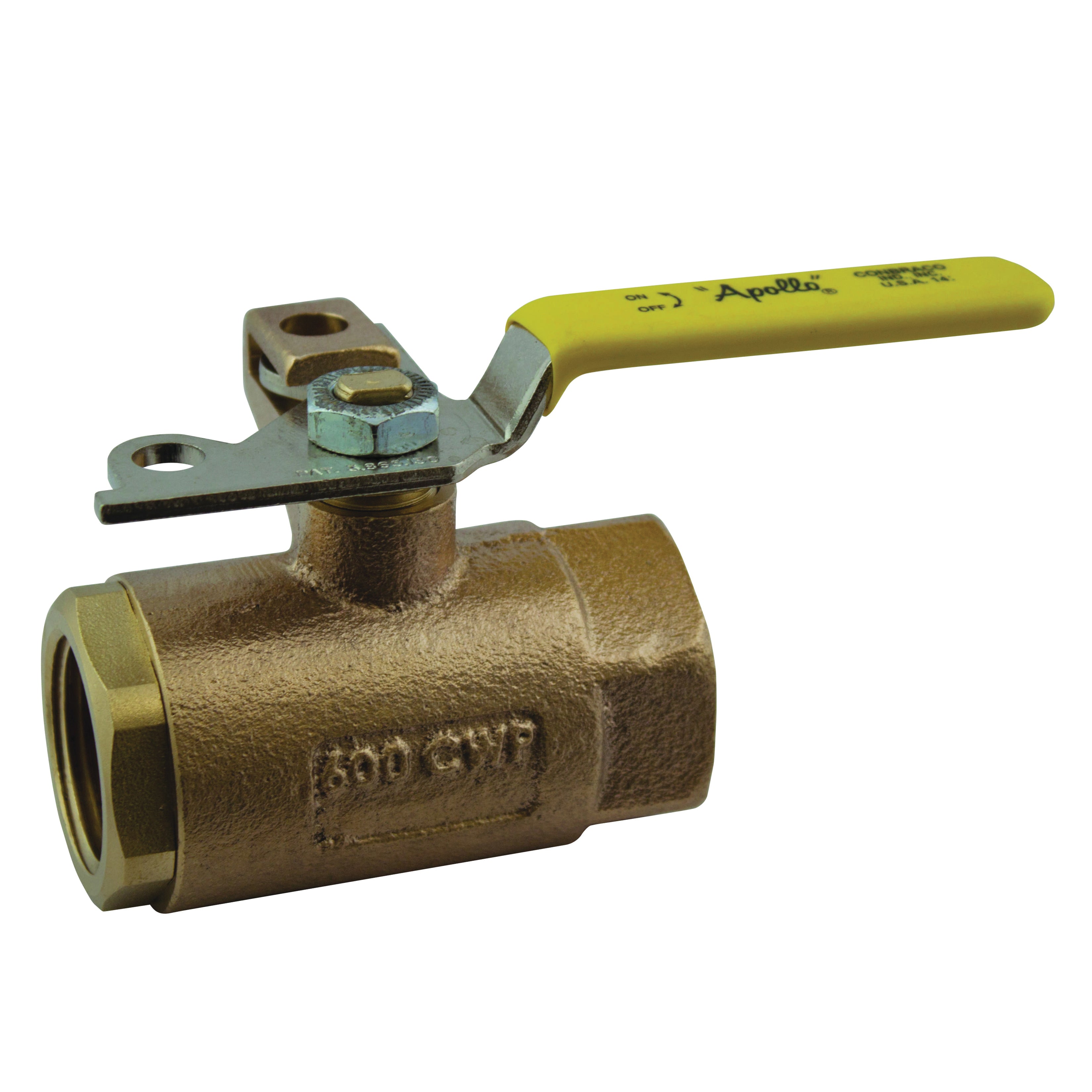

Conbraco 7510741 Apollo 2-Way Ball Valve - Manually Operated, 600 psi Max, Inline Threaded, Bronze Body

Product Description

The Conbraco 7510741 is a manually operated 2-way ball valve. This valve is designed for a maximum pressure of six hundred psi. It features an inline threaded connection and is constructed from bronze. The lever handle allows for easy operation.

• Features reinforced seats for durability.
• Blowout-proof stem design enhances safety.
• Padlocking capability allows secure open or closed positions.

Product Highlights

This valve is suitable for cold water and steam applications, rated for up to two hundred degrees Fahrenheit.

Product Information

Standard Information

• Brand: Conbraco
• Part Number: 7510741

Technical Specifications

• Port Size: 1-1/2 inches NPT
• Body Material: Bronze
• Ball Material: Chrome plated brass
• Seat Material: RPTFE
• Stem Material: B16 brass
• Pressure Rating: 600 psi for cold water, 150 psi for steam
• Temperature Rating: 50 to 200 degrees Fahrenheit
• Overall Length: 4.31 inches
• Flow Direction: 2-Way
