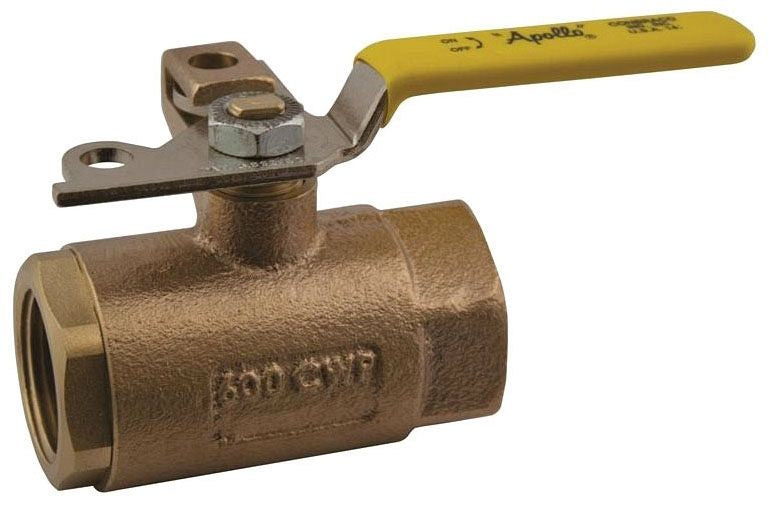

Conbraco 75-106-01 1-1/4 Brass Ball Valve W/Locking Hdl

Product Description

The CONBRACO 75-106-01 is a standard ball valve from the Series 75-100, featuring a 1-1/4 IN nominal size and FNPT connection type. It has a pressure rating of 600 PSI (CWP) and 150 PSI (SWP), with a temperature rating of 0 - 500 DEG F. The valve features a bronze body and a locking lever handle.

• Standard Ball Valve
• Locking Lever Handle
• 600 PSI

Product Highlights

This bronze ball valve has a locking lever handle and is suitable for various applications with its robust pressure and temperature ratings.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 75-106-01
• Country of Origin: USA

Technical Specifications

• Series/Model: Series 75-100
• Nominal Size: 1-1/4 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: 0 - 500 DEG F
• Body Material: Bronze
• Handle Operator Type: Locking Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: B16 Brass
• Trim Material: Brass Stem and RPTFE Seat
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball And Stem): ASTM B16
• Material Specification (Body): UNS C84400
• Finish/Color: Zinc Plated Handle, Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant, WW-V-35C Federal Specification, CRN: OC10908.5C
• Width: 4 IN
• Lead Free: No
• Other Physical Dimension: 2.62 IN Inlet Center To Top Of Handle, 5-1/2 IN Handle Length
• Flow Co-Efficient (Cv): 48
• Port Size: 1-1/4 NPT
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• Flow Direction: 2-Way
• Locking Device: Pad-Locking Device
• Overall Length: 3.97 in
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Stem Seal Material: MPTFE
• Valve Body Material: B584 Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• End Style: FNPT
• Port Type: Standard
• Softgoods Material: MPTFE
• Actuator Type: Lever
• Inlet to Outlet Length: 4 in
• Manufacturer: Apollo Conbraco
• Manufacturer #: 75-106-01
• Top to Inlet Center: 2.62
• Type: 2-Piece
• Connection: FPT
• CWP: 600
• Material: Bronze
• Pieces: 2
• Size: 1-1/4 in
• Item: BRONZE BALL VALVE INLINE FNPT 1-1/4 IN
• OEM: Apollo Valves (a Conbraco Company)
• OEM #: 75-106-01
• Condition: New OEM Original
• Returnable: No
• Warranty: Mfr Warranty
• Body Seal Material: PTFE
• General Connection Type: Female NPT
• Handle Type: Pad Locking Lever
• Max Pressure: 600 psi CWP
• Max Steam Pressure: 150 psi WSP
• Pipe Size: 1-1/4 in
• Stem Type: Blowout Proof
• Temperature Range: 50 Degrees to 200 Degrees F
• Valve Basic Body Material: Bronze
• Valve Structure: 2-Piece
• Configuration: Standard
• Domestic/Import: Domestic
• Lead-Free/Contains Lead: Contains Lead
• Media: Gas, Water
• Orifice Size: 1 in
