Conbraco 75-105-01 1 Brz Ball Valve 1 in

Product Description

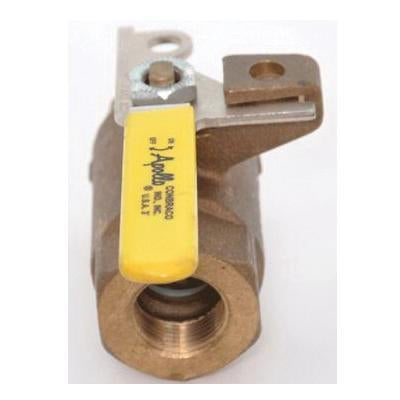

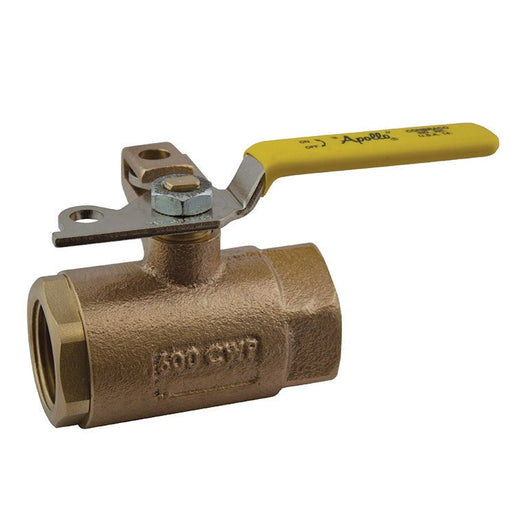

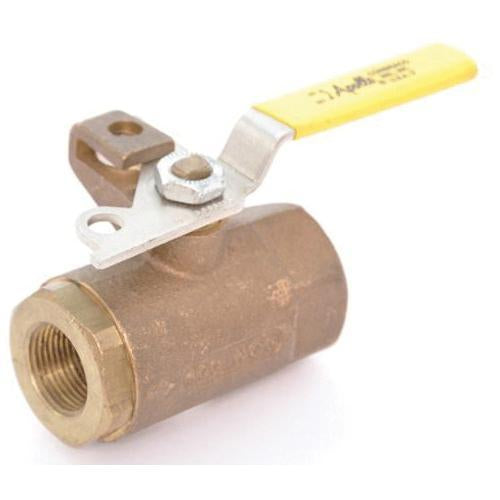

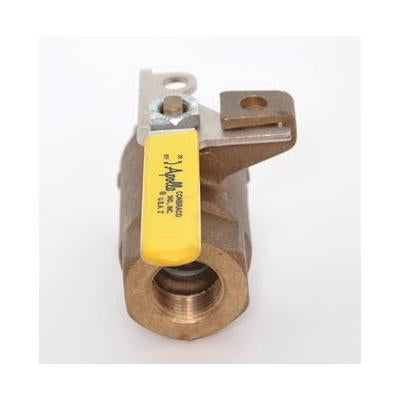

The CONBRACO 75-105-01 is a standard ball valve from the Series 75-100, featuring a 1 IN nominal size and FNPT connection. Constructed with a bronze body and a locking lever handle, it is designed for durability and secure operation. This valve is suitable for various applications requiring reliable flow control.

• Standard Ball Valve
• FNPT Connection
• Bronze Body
• Locking Lever Handle

Product Highlights

Durable bronze ball valve with locking lever handle and FNPT connection.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 75-105-01
• Country of Origin: Domestic

Technical Specifications

• Series/Model: Series 75-100
• Nominal Size: 1 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: 0 - 500 DEG F
• Opening: 0.87 IN
• Body Material: Bronze
• Operator Type: Locking Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Stem and RPTFE Seat
• Packing Material: MPTFE
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball And Stem): ASTM B16
• Material Specification (Body): UNS C84400
• Finish/Color: Zinc Plated Handle, Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant, WW-V-35C Federal Specification, CRN: OC10908.5C
• Width: 3.37 IN
• Lead Free: No
• Flow Co-Efficient (Cv): 43
• Standards: MSS SP-110 Compliant
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• Flow Direction: 2-Way
• Locking Device: Pad-Locking Device
• Overall Length: 3.35 in
• O-Ring Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: B584 Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Actuator Type: Lever Handle
• Material Standard: ASTM B584 Grade C84400, ASTM B16 or B283 Grade C37700
• Opening Size: 0.87 in
• Port Type: Standard
• Handle: Steel Zinc Plated
• End Style: FNPT
• Domestic / Import: Domestic
• Top to Inlet Center: 2.2
• Type: 2-Piece
• End connection: Female
• Material: Bronze
• Pressure: 600PSIG CWP/150PSIG SWP
• Handle type: Lever
• Seal material: RPTFE
• End to end distance: 3.37 IN
