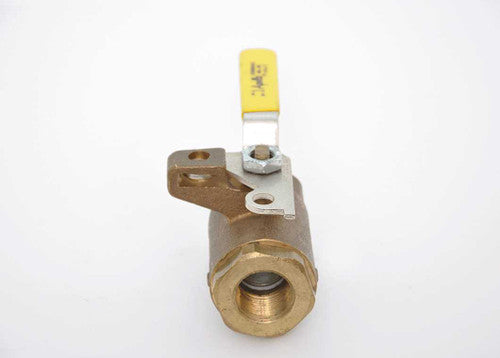

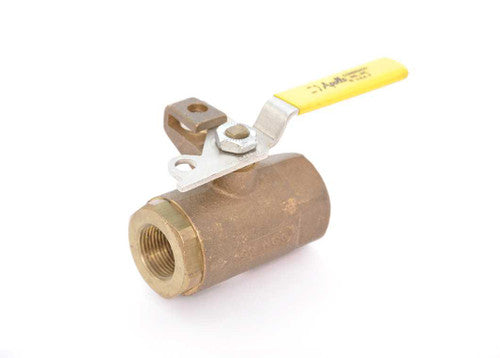

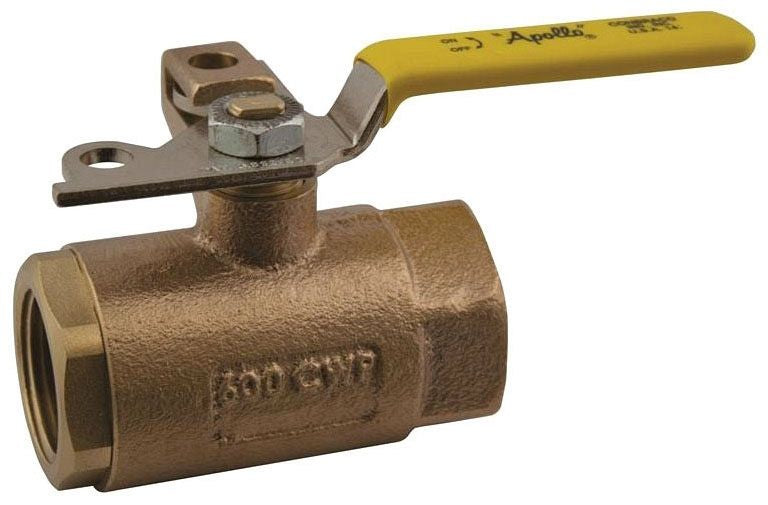

Conbraco 75-104-01 3/4 Brz Ball Valve

Product Description

The CONBRACO 75-104-01 is a standard ball valve with a 3/4 inch nominal size and FNPT connection. It features a locking lever handle for operation and is constructed with a bronze body. This valve is suitable for applications requiring a pressure rating of 600 PSI (CWP) or 150 PSI (SWP).

• Standard Ball Valve
• FNPT Connection
• Locking Lever Handle

Product Highlights

The CONBRACO 75-104-01 ball valve offers reliable performance with its bronze body and locking lever handle.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 75-104-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 75-100
• Nominal Size: 3/4 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: 0 - 500 DEG F
• Opening: 0.87 IN
• Body Material: Bronze
• Handle Operator Type: Locking Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Body Material Standard: ASTM B584
• Ball And Stem Material Standard: ASTM B16
• Body Material Specification: UNS C84400
• Finish/Color: Zinc Plated Handle, Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant, WW-V-35C Federal Specification, CRN: OC10908.5C
• Width: 3.37 IN
• Lead Free: No
• Other Physical Dimension: 2-1/4 IN Inlet Center To Top Of Handle, 3.87 IN Handle Length
• Flow Co-Efficient (Cv): 30
• Port Size: 3/4 NPT
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• Stem Seal Material: MPTFE
• Valve Body Material: B584 Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• O-Ring Material: PTFE
