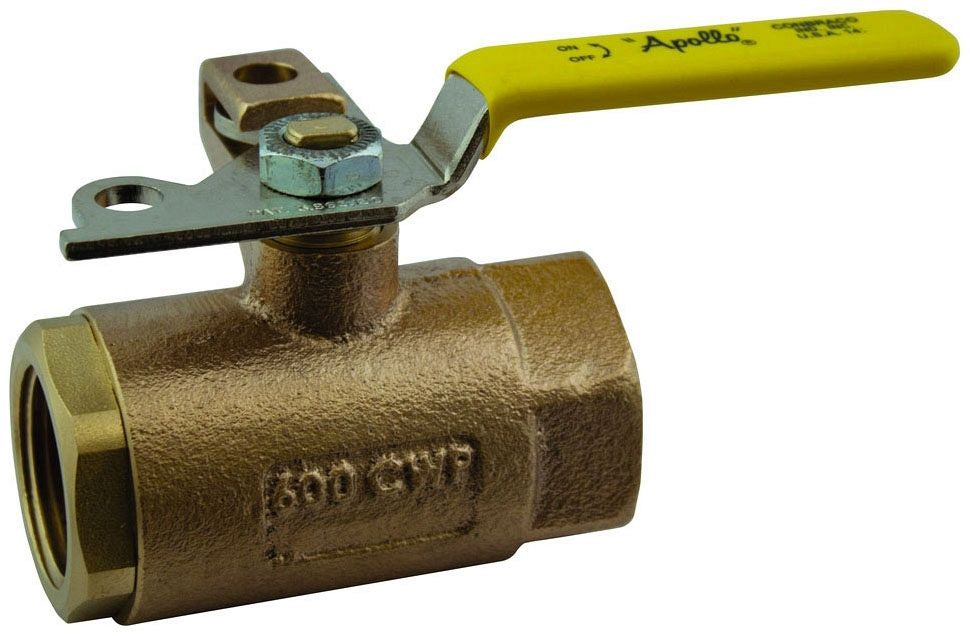

Conbraco 75-103-01 Brz Ball Valve 1/2 in

Product Description

The CONBRACO 75-103-01 is a standard ball valve with a 1/2 IN nominal size and FNPT connection. Constructed with a bronze body, it features a locking lever handle for operation. Designed for pressure ratings up to 600 PSI (CWP) and 150 PSI (SWP), with a temperature rating of 0 - 500 DEG F.

• Standard Ball Valve
• FNPT Connection
• Locking Lever Handle

Product Highlights

This bronze ball valve is suitable for controlling fluid flow in various applications, offering durability and secure operation with its locking lever handle.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 75-103-01

Technical Specifications

• Series/Model: Series 75-100
• Nominal Size: 1/2 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: 0 - 500 DEG F
• Opening: 1/2 IN
• Body Material: Bronze
• Operator Type: Locking Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Stem and RPTFE Seat
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball And Stem): ASTM B16
• Material Specification (Body): UNS C84400
• Finish/Color: Zinc Plated Handle, Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant, WW-V-35C Federal Specification, CRN: OC10908.5C
• Width: 2.22 IN
• Lead Free: No
• Other Physical Dimension: 1.81 IN Inlet Center To Top Of Handle, 3 IN Handle Length
• Flow Co-Efficient (Cv): 15
• Port Size: 1/2 NPT
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• Stem Seal Material: MPTFE
• Valve Body Material: B584 Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• O-Ring Material: PTFE
• Overall Length: 2.22 in
• Flow Direction: 2-Way
• Locking Device: Pad-Locking Device
• Valve Body Material Standard: B584 Bronze
• Stem Material Standard: B16 Brass
• Softgoods Material: MPTFE
• Actuator Type: Lever
• Inlet to Outlet Length: 2-1/4 in
• Top to Inlet Center: 1.81 in
• Material Standard: ASTM B16, ASTM B584, ASTM B927
• Body: C84400 Cast Bronze
• Seat: RPTFE
• Packing: MPTFE
• Handle: Vinyl/Zinc-Plated Steel
• Ball: C37700 Chrome-Plated Brass
• Domestic/Import: Domestic
• Lead-Free/Contains Lead: Contains Lead
• CWP: 600
• Material: Bronze
• Pieces: 2
• Size: 1/2 in
• Manufacturer: Conbraco
• Part Number: 75-103-01
• Temperature: 50 to-200 deg F
• Max. PSI: 600
