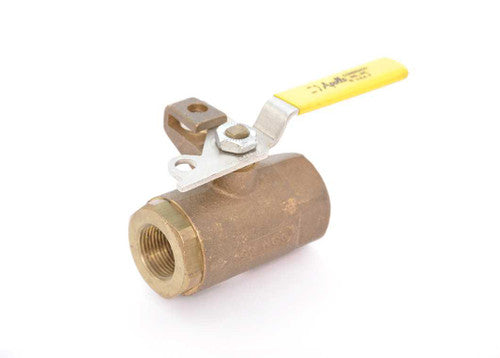

Conbraco 75-101-01 1/4 Brz Ball Valve W/Pad Lock Hdl

Brand: CONBRACO
SKU: 75-101-01
Availability: In Stock

Ships same day if ordered by 12 pm
$70.99
$70.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The CONBRACO 75-101-01 is a standard ball valve from the Series 75-100 with a 1/4 IN nominal size and FNPT connection type. Constructed with a bronze body and a locking lever handle, it is suitable for applications with pressure ratings up to 600 PSI (CWP) and 150 PSI (SWP). It features a brass stem and trim, RPTFE seat material, and a flow coefficient (Cv) of 8.4.

  • Standard Ball Valve
  • Locking Lever Handle
  • 600 PSI

Product Highlights

This bronze ball valve features a locking lever handle, making it suitable for various industrial applications. It meets MSS-SP-110 standards.

Product Information

Standard Information

  • Brand: CONBRACO
  • Manufacturer Part Number: 75-101-01
  • Country of Origin: United States
Technical Specifications
Series/Model
Series 75-100
Nominal Size
1/4 IN
Connection Type
FNPT
Pressure Rating
600 PSI (CWP), 150 PSI (SWP)
Temperature Rating
0 - 500 DEG F
Opening
0.43 IN
Body Material
Bronze
Handle Operator Type
Locking Lever Handle
Handle Material
Steel With Vinyl Grip
Stem Material
Brass
Trim Material
Brass Stem and RPTFE Seat
Packing Material
MPTFE Stem
Seat Material
RPTFE
Seal Material
PTFE
Material Standard (Body)
ASTM B584
Material Standard (Ball And Stem)
ASTM B16
Material Specification (Body)
UNS C84400
Finish/Color
Zinc Plated Handle, Chrome Plated Ball
Industry Standards
MSS-SP-110 Compliant, WW-V-35C Federal Specification, CRN: OC10908.5C
Width
2.22 IN
Lead Free
No
Other Physical Dimension
1.81 IN Inlet Center To Top Of Handle, 3 IN Handle Length
Flow Co-Efficient (Cv)
8.4
Port Size
1/4 NPT
Standards
MSS SP-110 Compliant
Body Style
2 Piece
Control Type
Manually Operated
Handle Style
Lever Handle
Ball Material
Chrome Plated Brass
Mounting Type
Inline Threaded
Porting Style
Standard Port
Flow Direction
2-Way
Locking Device
Pad-Locking Device
Overall Length
2.22 in
O-Ring Material
PTFE
Connection Gender
Threaded
Stem Seal Material
MPTFE
Valve Body Material
B584 Bronze
Media Pressure Rating
Cold Water - 600 psi, Steam - 150 psi
Maximum Operating Pressure
600 psi
End Style
FNPT
Port Type
Standard
Actuator Type
Lever
Inlet to Outlet Length
2.22
Manufacturer
Apollo Conbraco
Manufacturer #
75-101-01
Top to Inlet Center
1.74
Type
2-Piece
Item
Ball Valve
