Conbraco 73A-105-01A 1 CS Std Ball Valve 1 in

Product Description

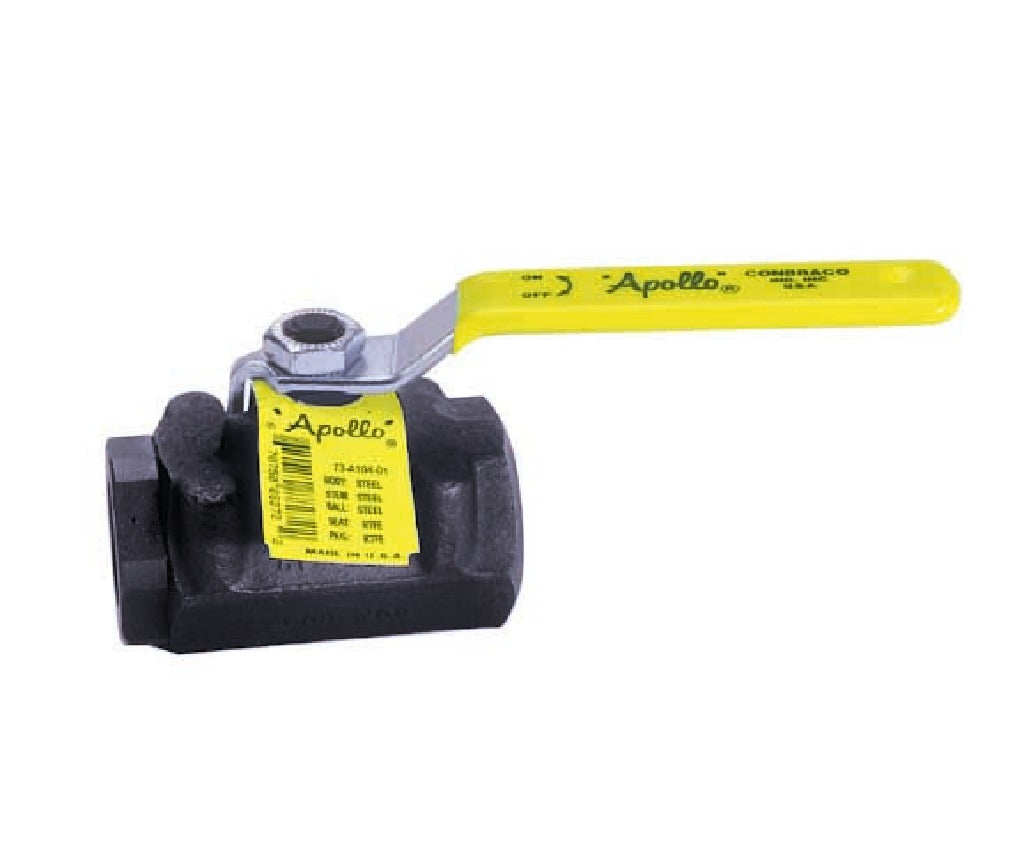

The CONBRACO 73A-105-01A is a 2-Piece In-Line Standard Ball Valve. It features a carbon steel body and a lever handle operator. Suitable for various applications, this valve is MSS-SP-110 compliant and AAR approved #E999032. It offers a pressure rating of 2000 PSI (CWP) and 150 PSI (SWP).

• 2-Piece In-Line Standard Ball Valve
• Lever Handle Operator
• MSS-SP-110 Compliant

Product Highlights

This ball valve is designed for durability and reliability in demanding environments.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 73A-105-01A

Technical Specifications

• Series/Model: Series 73A-100
• Nominal Size: 1 IN
• Connection Type: FNPT x FNPT
• Pressure Rating: 2000 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -20 To 450 DEG F
• Opening: 1 IN
• Body Material: Forged Carbon Steel
• Operator Type: Lever Handle
• Handle Material: Zinc Plated Steel with Vinyl Grip
• Stem Material: Carbon Steel Melonite
• Trim Material: Carbon Steel Ball
• Packing Material: MPTFE
• Seat Material: RPTFE
• Seal Material: RPTFE
• Material Standard (Body And Stem): ASTM A108
• Finish/Color: Zinc Plated Handle, Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant, AAR Approved #E999032
• Width: 3.4 IN
• Lead Free: No
• Other Physical Dimension: 2.18 IN Inlet Center To Top Of Handle, 4-3/4 IN Handle Length
• Flow Co-Efficient (Cv): 43
• End Style: Threaded
• Type: Ball Valve
• Series: 73-100
• Manufacturer: Aalberts Integrated Piping Systems
• Category: Ball Valves
• Connection: Threaded
• Handle Style: Lever
• Porting Style: Standard Port
• Body Style: Inline
• Flow Coefficient Cv Flow Factor Kv: 43 Cv
• Standards Met: MSS-SP-110, A108
• Media Pressure Rating: Cold Water - 2000 psi, Steam - 150 psi
• Body Seal Material: RPTFE
• Stem Seal Material: MPTFE
• Ball Material: Chrome Plated Carbon Steel
• Valve Body Material: Carbon Steel
• Valve Size: 1 NPT
• Overall Length: 6.48 in
• Pipe Size: 1 in
• Compliance Specifications: ISO 9001
• Handle Type: Lever
• Max Pressure: 2000 psi CWP
• Maximum Steam Pressure: 150 PSI WSP
• Stem Type: Blowout Proof
• Temperature Range: 20 to 450 °F
• Valve Structure: 2-Piece
• Actuator Type: Lever
• Configuration: Standard
• Domestic/Import: Domestic
• Media: Gas, Water
• Orifice Size: 0.87 in
• Port Type: Standard
• Inlet to Outlet Length: 3.4 in
• Material Standard: ASTM A276, ASTM A108, A105, A216-WCB
• Top to Inlet Center: 2.18 in
