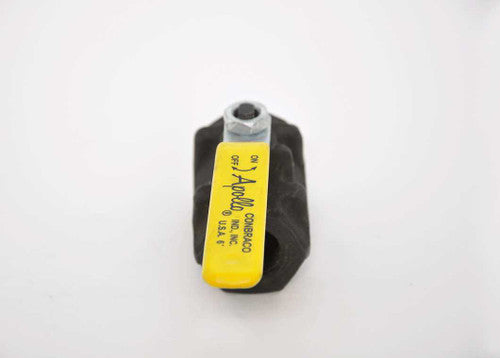

Conbraco 73A-103-01A 1/2 CS Std Ball Valve

Product Description

The CONBRACO 73A-103-01A is a 2-Piece In-Line Standard Ball Valve from the Series 73A-100. It features a 1/2 IN nominal size and FNPT connection type. The valve is designed with a carbon steel body and a lever handle operator. It has a pressure rating of 2000 PSI (CWP) and a temperature rating of -20 To 450 DEG F.

• Features a carbon steel body material.
• Equipped with a steel handle with vinyl grip.
• Compliant with MSS-SP-110 and AAR Approved #E999032 industry standards.

Product Highlights

This ball valve is suitable for various applications requiring reliable flow control with robust material construction and industry standard compliance.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 73A-103-01A
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 73A-100
• Nominal Size: 1/2 IN
• Connection Type: FNPT
• Pressure Rating: 2000 psi CWP
• Temperature Rating: -20 To 450 DEG F
• Opening Size: 0.62 IN
• Body Material: Carbon Steel- A105
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Carbon Steel Or Stainless Steel
• Trim Material: Carbon Steel/RPTFE
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: RPTFE
• Material Standard: Body And Stem: ASTM A108
• Industry Standards: MSS-SP-110 Compliant, AAR Approved #E999032
• Width: 2.31 IN
• Lead Free: No
• Inlet Center To Top Of Handle: 1.78 IN
• Handle Length: 3.85 IN
• Flow Co-Efficient (Cv): 15
• Item: Ball Valve, 2 Way Valve
• Port: Standard
• Ball Material: ASTM A108, Carbon Steel, chrome plated or ASTM A276, Type 316 Stainless Steel
• Stem Packing: MPTFE
• Stem Bearing: RPTFE
• End Style: FNPT
• Media: Water
• Port Type: Standard
• Series: 73A-100
• Softgoods Material: MPTFE
• Top to Inlet Center: 1.78 in
• Type: 2-Piece
• Actuator Type: Lever Handle
• Domestic/Import: Domestic
