Conbraco 71-AR7-64 ball valve 1-1/2 NPT

Product Description

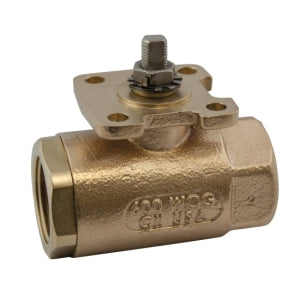

The CONBRACO 71-AR7-64 is a manually operated ball valve with a 1-1/2 NPT port. It features a bronze body, a 316 stainless steel ball and stem, and a standard porting style. Designed with a blowout-proof stem and adjustable packing gland, this 2-way valve is suitable for inline threaded mounting.

• Features a multi-piece packing set and ISO 5211 mounting pad.
• Equipped with a stainless steel ball and stem for durability.
• Compliant with MSS SP-110 standards.

Product Highlights

This bronze body ball valve offers reliable performance with its robust design and stainless steel components.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 71-AR7-64

Technical Specifications

• Series: 71-AR
• Port Size: 1-1/2 NPT
• Standards: MSS SP-110 Compliant
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Without Handle - Actuator Ready
• Ball Material: 316 Stainless Steel
• Body Material: Bronze
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• Seat Material: MPTFE
• Stem Material: 316 Stainless Steel
• Flow Direction: 2-Way
• Overall Length: 4.34 in
• Connection Gender: Threaded
• Body Seal Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: B584 Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 250 psi
• Maximum Operating Pressure: 600 psi
• Connection Type: FNPT
• Domestic/Import: Domestic
• Flow Coefficient (Cv): 84 Cv
• Inlet to Outlet Length: 4.34 in
• Material Standard: ASTM B16, ASTM B584-C84400
• Media: Gas, Water
• Nominal Size: 1-1/2 in
• Orifice Size: 1-1/4 in
• Packing Material: MPTFE
• Port Type: Standard
• Pressure Rating: 250 psig, 600 psig
• Seal Material: PTFE
• Top to Inlet Center: 3.16 in
• Category: Valves
• Subcategory: Ball Valve
