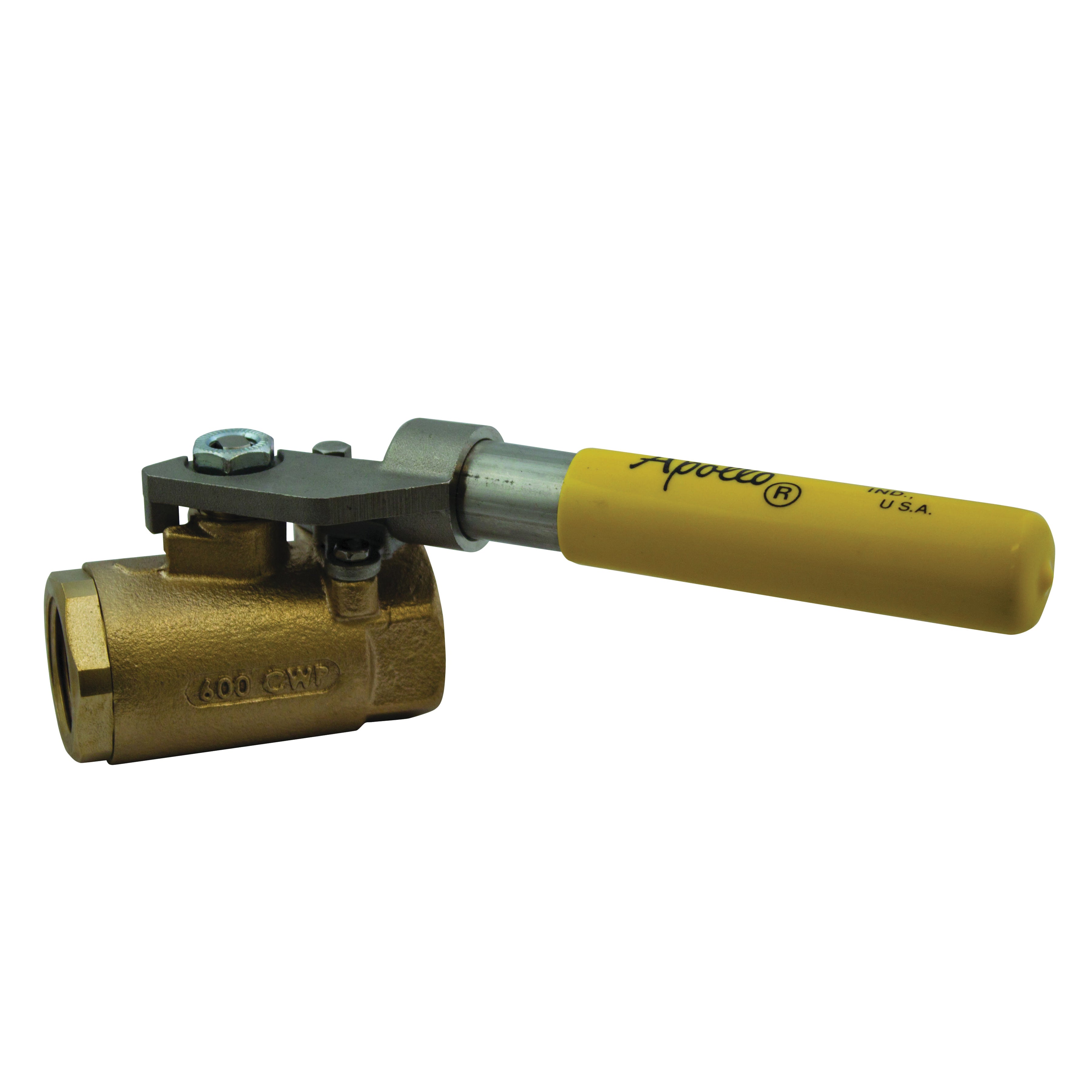

Conbraco 71-508-01 3/4 in FNPT Bronze Ball Valve Inline

Product Description

Conbraco 71-508-01 is a bronze ball valve designed for various plumbing applications. This valve features a spring return handle, ensuring it defaults to a closed position. It is suitable for use in fuel lines and other systems where a shut-off function is essential. The valve is constructed to resist blowouts and has adjustable packing, making it reliable for continuous use.

• Spring return handle for automatic closure
• Blow-out-proof stem design
• Maximum pressure rating of six hundred psi

Product Highlights

This valve is ideal for industrial and commercial applications where reliability is critical.

Product Information

Standard Information

• Brand: Conbraco
• MPN: 71-508-01

Technical Specifications

• Weight: 6.41 lbs
• Pipe Size: 2 in
• Stem Type: Blow-out proof
• Body Style: Inline
• Connection: Threaded
• Ball Material: Chrome plated brass
• Body Material: Bronze
• Handle Type: Spring return
• Valve Size: 2 NPT
• Temperature Range: -20 to 450 °F
• Maximum Pressure: 600 psi CWP
• Compliance Specifications: MSS SP-110
• Flow Coefficient (Cv): 108 Cv
