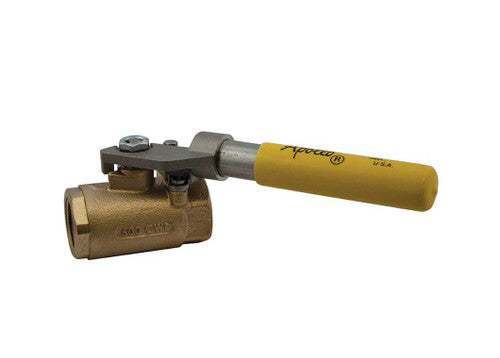

Conbraco 71-504-01 Brz Std Ball Valve W/Spring Rtn Hdl 3/4 IN

Product Description

The CONBRACO 71-504-01 is a 2-Piece In-Line Standard Ball Valve With Pads, part of the Series 71-500. It features a bronze body and a lever handle operator. This valve is suitable for various applications requiring reliable flow control. It is MSS-SP-110 Compliant.

• 2-Piece In-Line Standard Ball Valve With Pads
• Lever Handle Operator Type
• Chrome Plated Ball

Product Highlights

The CONBRACO 71-504-01 is a durable and efficient ball valve designed for reliable performance in diverse industrial and commercial settings.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 71-504-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 71-500
• Nominal Size: 3/4 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -20 To 450 DEG F
• Opening: 0.68 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Stainless Steel With Vinyl Grip
• Stem Material: 316 Stainless Steel
• Trim Material: Brass Ball
• Packing Material: Multifill PTFE Stem
• Seat Material: Multifill PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball): ASTM B16
• Material Standard (Stem): ASTM A276
• Body Material Specification: UNS C84400
• Finish/Color: Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant
• Width: 3 IN
• Lead Free: No
• Handle Length: 7 IN
• Stem Type: Blowout Proof
• Body Style: Inline
• Connection: Threaded
• Valve Size: 3/4 NPT
• Handle Type: Spring Return
• Handle Style: Spring Return Lever
• Ball Material: Chrome Plated Brass
• Porting Style: Standard Port
• Standards Met: MSS-SP-110
• Overall Length: 7.34 in
• Valve Structure: 2-Piece
• Maximum Pressure: 600 psi CWP
• Body Seal Material: PTFE
• Stem Seal Material: Multifill PTFE
• Valve Body Material: Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Steam Pressure: 150 psi WSP
• Compliance Specifications: MSS SP-110
• Flow Coefficient (Cv) / Flow Factor (Kv): 30 Cv
• Actuator Type: Spring Return Handle
• Material Standard: ASTM B584 Grade C84400, ASTM A276
• Opening Size: 0.68 in
• Seal Material: PTFE
• Series: 71-500 Series
• Port: Full
