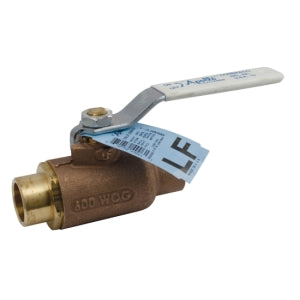

Conbraco 70LF-245-01 Lead Free C X C Brz Ball Valve 1 IN

Product Description

The CONBRACO 70LF-245-01 is a 2-Piece In-Line Standard Ball Valve from the Series 70LF-240. This lead-free valve features a 1 IN nominal size and a compression (solder) connection type. It is designed with a bronze body and a lever handle operator, suitable for various plumbing applications. The valve is compliant with MSS-SP-110 and NSF/ANSI standards.

• 2-Piece In-Line Standard Ball Valve
• Lead Free
• Compression (Solder) Connection

Product Highlights

Lead-free ball valve with bronze body, stainless steel stem and trim, and RPTFE seats, suitable for plumbing applications.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70LF-245-01
• Country of Origin: USA

Technical Specifications

• Series/Model: Series 70LF-240
• Nominal Size: 1 IN
• Connection Type: Compression (Solder)
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -50 To 450 DEG F
• Opening: 0.87 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Ball
• Packing Material: RPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Specification Body: UNS C89836
• Handle Finish/Color: Zinc Plated
• Industry Standards: MSS-SP-110 Compliant, NSF /ANSI 61-8, Annex G, NSF/ANSI 372, NSF /ANSI 372 Lead Free ANSI 3rd Party Certified
• CRN: OC10908.5C
• Width: 4-1/2 IN
• Lead Free: Yes
• Other Physical Dimension: 2-1/4 IN Inlet Center To Top Of Handle, 4.87 IN Handle Length
• Item Name: In-Line Standard Ball Valve
• Type: 2-Piece
• Opening Size: 0.87 IN
• Material Specification: Body: UNS C89836
