Conbraco 70LF-243-01 1/2 Lead Free C X C Brz Ball Valve

Product Description

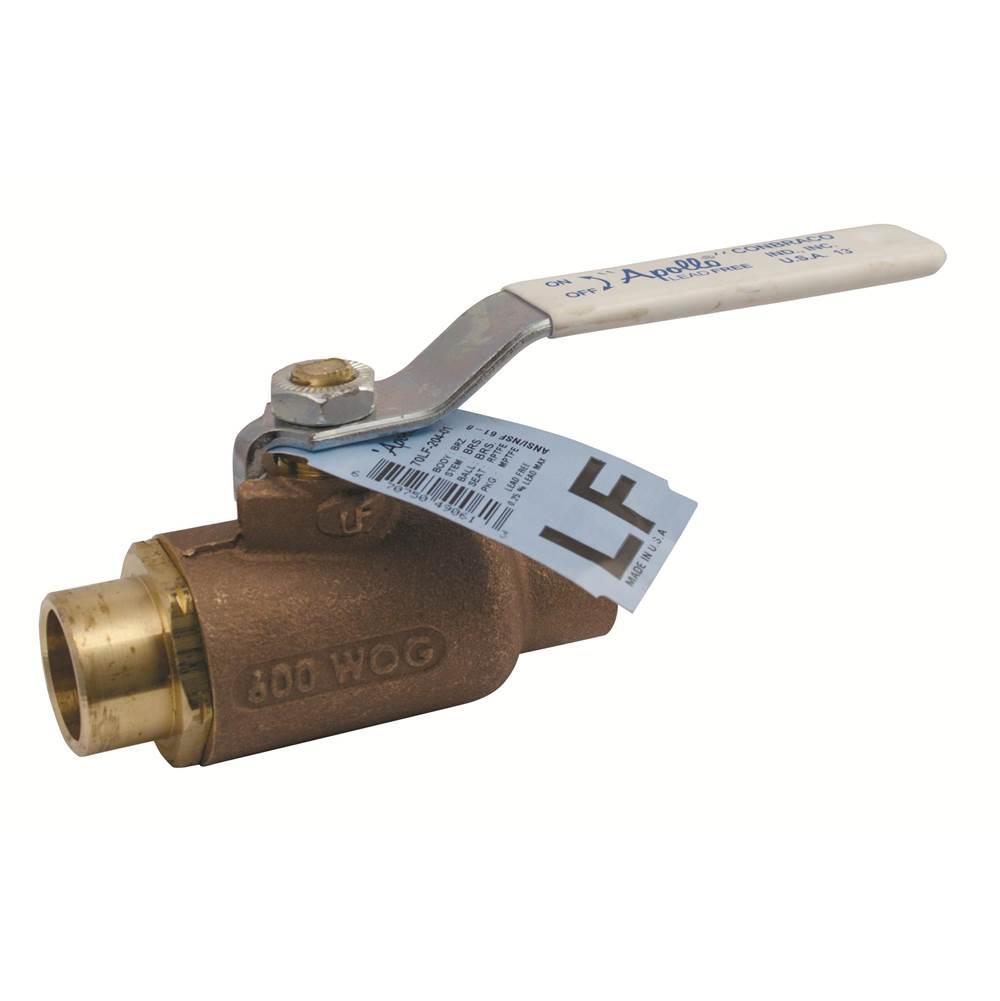

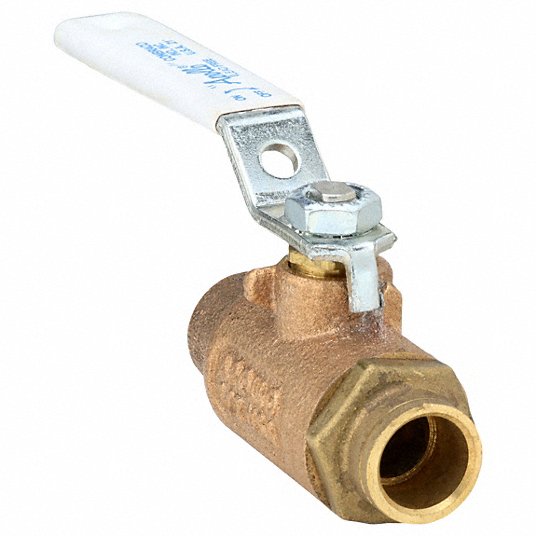

The CONBRACO 70LF-243-01 is a 2-Piece In-Line Standard Ball Valve. It has a nominal size of 1/2 IN and a compression (solder) connection type. Designed with a bronze body material and a 316 stainless steel stem and trim. Features a steel lever handle with vinyl grip and RPTFE seats.

• Lead Free
• 2-Piece In-Line Standard Ball Valve
• Temperature Rating: -50 To 450 DEG F

Product Highlights

This lead-free bronze ball valve is suitable for plumbing and heating systems, including potable water. It is corrosion-resistant and suited for high-temperature applications.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70LF-243-01
• Country of Origin: USA

Technical Specifications

• Series/Model: Series 70LF-240
• Nominal Size: 1/2 IN
• Connection Type: Compression (Solder)
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -50 To 450 DEG F
• Opening: 1/2 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: PVC; Zinc-Plated Steel
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Ball
• Packing Material: RPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Body Material Specification: UNS C89836
• Handle Finish/Color: Zinc Plated
• Industry Standards: MSS-SP-110 Compliant, NSF /ANSI 61-8, Annex G, NSF/ANSI 372, NSF /ANSI 372 Lead Free ANSI 3rd Party Certified
• CRN: OC10908.5C
• Width: 2.87 IN
• Lead Free: Yes
• Other Physical Dimension: 1-3/4 IN Inlet Center To Top Of Handle, 3.87 IN Handle Length
• Actuator Type: Lever
• Domestic/Import: Domestic
• Flow Coefficient (Cv): 15 Cv
• Port Type: Regular
• Valve Construction: Two-Piece
• Valve Body Style: Straight
• Ball Port Style: Standard
• Connection Size - Side 1: 1/2 in
• Connection Type - Side 2: Sweat
• Connection Size - Side 2: 1/2 in
• Max. Pressure (CWP): 600 psi
• Max. Pressure (Steam): 150 psi
• Vacuum Service Rating: 29 in Hg
• Handle: Lever
• Ball Material: Chrome-Plated Bronze
• Stem Type: Blowout Resistant
• NSF Certifications for Food and Drinking Water: NSF 61
• Standards: Build America Buy America Act (BABA); Buy American Act (BAA); CRN; Material Quality C89836 (Lead-Free)
• Valve Ways: 2-Way
• Valve Body Color: Bronze
• Handle Length: 3.85 in
• Valve Series: 70
