Conbraco 70LF-208-01 2 Lead Free Brz Sweat Ball Valve 2 IN

Product Description

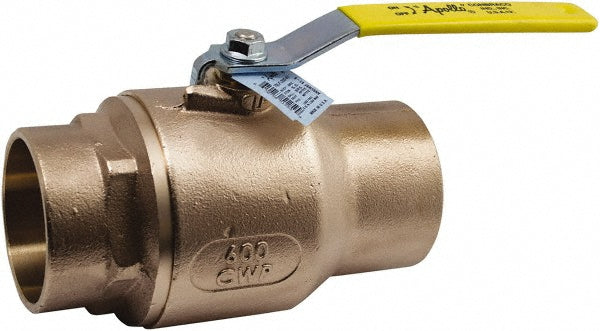

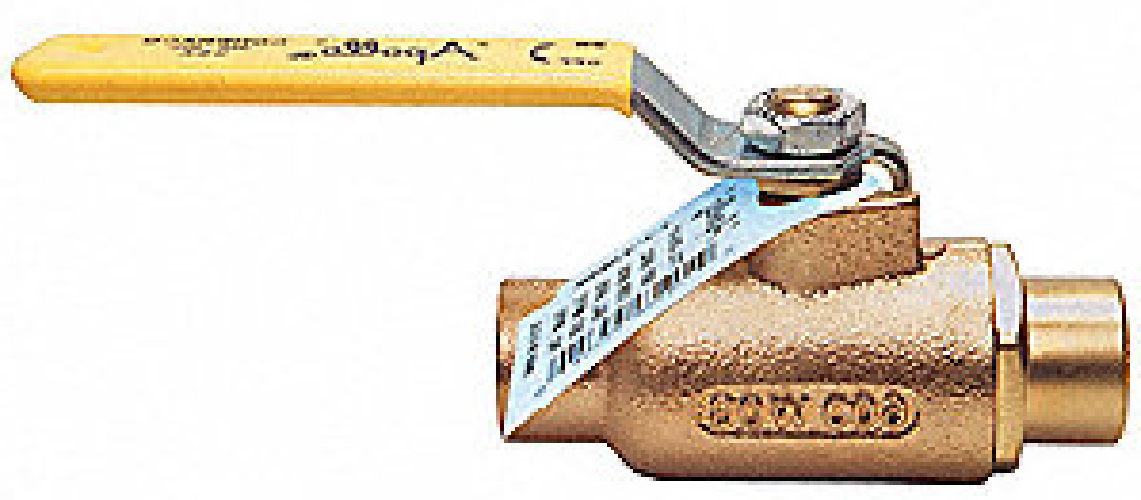

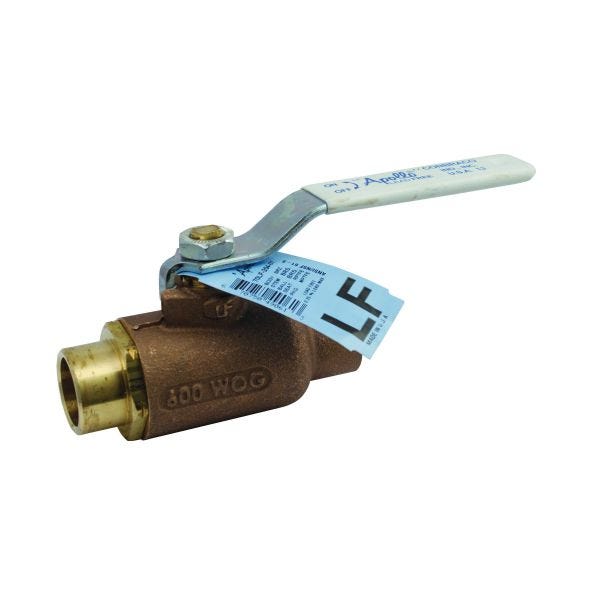

The CONBRACO 70LF-208-01 is a 2-piece in-line standard ball valve. It features a bronze body, brass stem, and a steel lever handle with a vinyl grip. Designed with a 2 IN nominal size and compression (solder) connection, it is suitable for various applications with a pressure rating of 600 PSI (CWP) and 150 PSI (SWP).

• 2-Piece In-Line Standard Ball Valve
• Lead Free
• Compression (Solder) Connection

Product Highlights

This lead-free bronze ball valve is ideal for plumbing and heating systems, including potable water. It is MSS-SP-110 compliant and 100% factory tested.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70LF-208-01
• Country of Origin: USA

Technical Specifications

• Series/Model: Series 70LF-200
• Nominal Size: 2 in
• Connection Type: Compression (Solder)
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -50 To 450 DEG F
• Opening: 1-1/2 IN
• Body Material: Bronze
• Handle Operator Type: Lever Handle
• Handle Material: Steel
• Stem Material: Brass
• Trim Material: Brass Stem/RPTFE Seat
• Packing Material: RPTFE Stem
• Seat Material: RPTFE
• Seal Material: Reinforced Polytetrafluroethylene
• Body Material Specification: UNS C89836
• Ball And Stem Material Specification: UNS C27451
• Handle Finish/Color: Zinc Plated
• Ball Finish/Color: Chrome Plated
• Industry Standards: MSS-SP-110 Compliant, NSF /ANSI 61-8, Annex G, NSF/ANSI 372, NSF /ANSI 372 Lead Free ANSI 3rd Party Certified, CRN: OC10908.5C
• Width: 6.37 IN
• Lead Free: Yes
• Other Physical Dimension: 3-1/4 IN Inlet Center To Top Of Handle, 8 IN Handle Length
• Actuator Type: Lever
• Domestic/Import: Domestic
• Flow Coefficient (Cv): 108 Cv
• Material Standard: ASTM C89836, ASTM C27451, ASTM B16
• Media: Gas, Water
• Port Type: Regular
• Top to Inlet Center: 3-1/4 in
• Valve Type: Ball; Standard
• Valve Structure: 2-Piece
• End Connection: Soldered x Soldered
• Steam Pressure Rating (psi): 150
• Standards: MSS SP-110 Compliant
• Maximum Working Temperature (F): 350
• Softgoods Material: RPTFE
• End Style: Solder
• Brand: Apollo/Conbraco
• Use: Sweat
• Size: 2"
