Conbraco 70LF-207-01 1-1/2 Lead Free Brz Sweat Ball Valve

Product Description

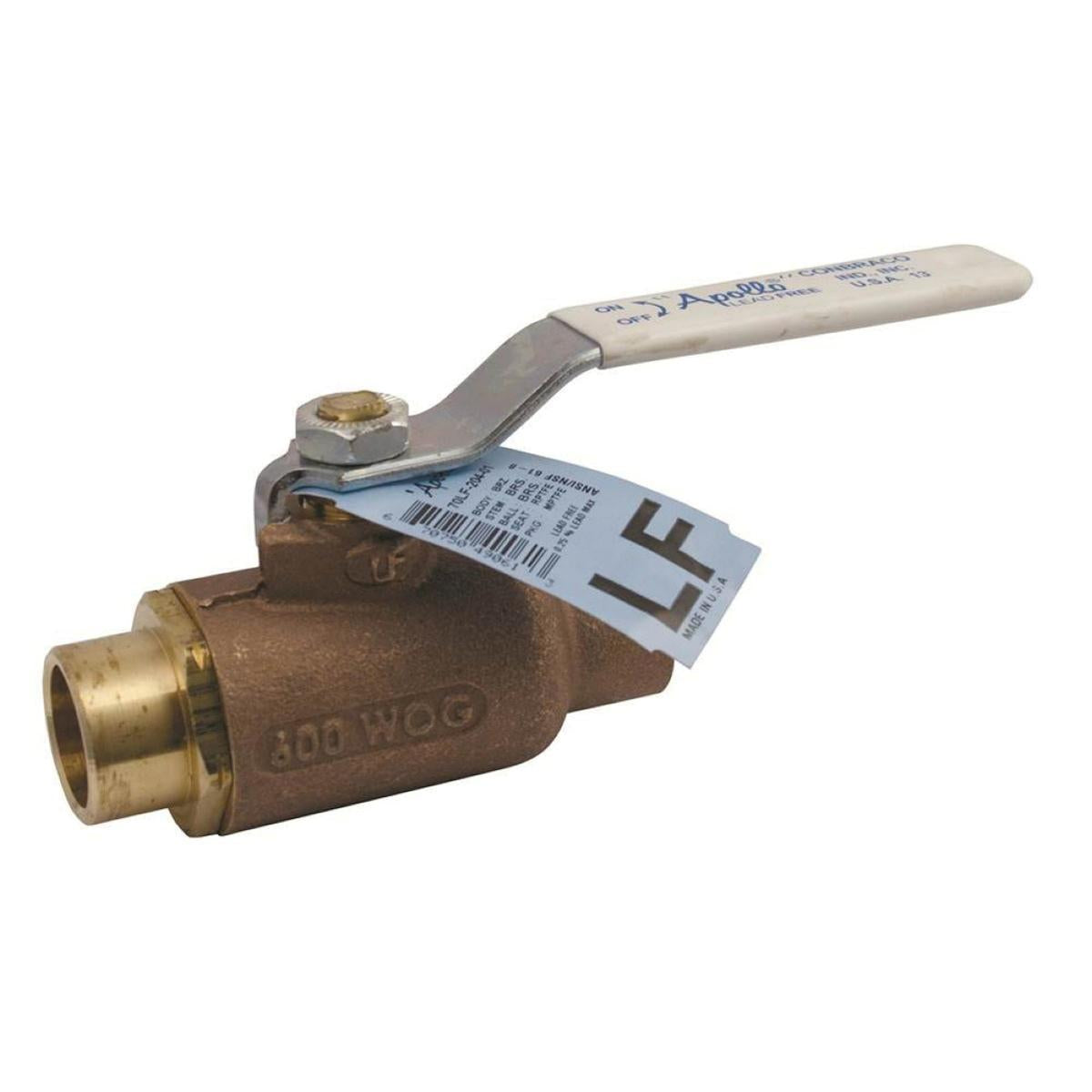

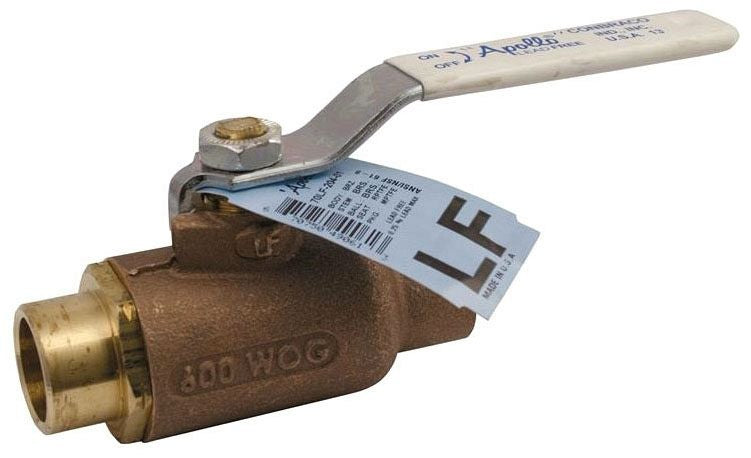

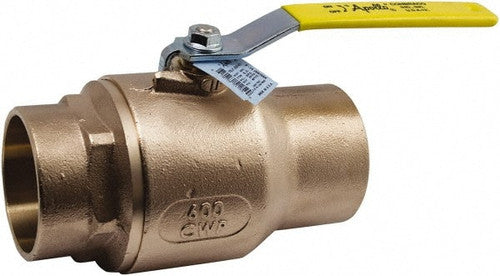

The CONBRACO 70LF-207-01 is a 2-Piece In-Line Standard Ball Valve from the Series 70LF-200. This valve features a 1-1/2 IN nominal size with a compression (solder) connection type. It is designed with a bronze body and a lever handle for operation. Suitable for plumbing and heating systems, including potable water applications.

• Lead Free construction.
• Temperature rating: -50 to 450 DEG F.
• Pressure rating: 600 PSI (CWP), 150 PSI (SWP).

Product Highlights

The CONBRACO 70LF-207-01 ball valve offers reliable performance with lead-free materials, making it ideal for various plumbing and heating applications.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70LF-207-01
• Country of Origin: USA

Technical Specifications

• Series/Model: Series 70LF-200
• Nominal Size: 1-1/2 IN
• Connection Type: Compression (Solder)
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -50 To 450 DEG F
• Opening: 1-1/4 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Zinc Plated Steel (Lever), Vinyl (Grip)
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: RPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Body Material Specification: UNS C89836
• Ball And Stem Material Specification: UNS C27451
• Handle Finish/Color: Zinc Plated
• Ball Finish: Chrome Plated
• Industry Standards: MSS-SP-110 Compliant, NSF /ANSI 61-8, Annex G, NSF/ANSI 372, NSF /ANSI 372 Lead Free ANSI 3rd Party Certified
• CRN: OC10908.5C
• Width: 5-1/4 IN
• Lead Free: Yes
• Other Physical Dimension: 3.06 IN Inlet Center To Top Of Handle, 8 IN Handle Length
• Actuator Type: Lever
• Domestic/Import: Domestic
• Flow Coefficient (Cv): 84 Cv
• Inlet to Outlet Length: 5-1/4 in
• Material Standard: ASTM C89836, ASTM C27451, ASTM B16
• Media: Gas, Water
• Orifice Size: 1-1/4 in
• Port Type: Standard
• Top to Inlet Center: 3.06 in
• Actuation Type: Lever Handle
• Applicable Standard: MSS-SP-110, NSF/ANSI 61/372, CRN OC10908.5C, UPC
• Application: Plumbing, Heating System, Potable Water
• Ball Material: C27451 Chrome Plated Brass
• End Connection: Soldered x Soldered
• Inclusions/Features: ASTM B16 Brass Gland Nut, C27451 Brass Retainer, Zinc Plated Steel Lever Nut
• Valve Type: Standard Ball Valve
• Pipe Size: 1-1/2
• Valve Structure: 2-Piece
• Wsp Rating: 150psi
• End to End Distance: 5.25 Inch
