Conbraco 70LF-205-01 1 Lead Free Brz Sweat Ball Valve 1 in

Product Description

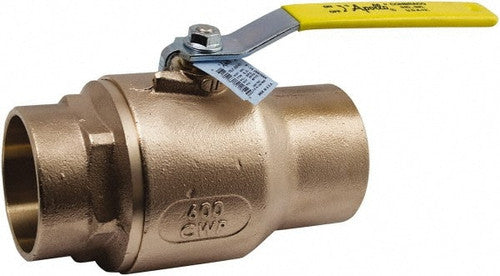

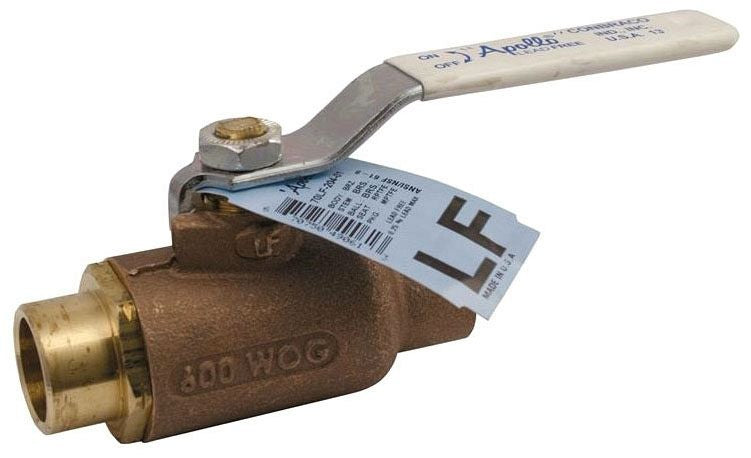

The CONBRACO 70LF-205-01 is a 2-Piece In-Line Standard Ball Valve. It features a bronze body and a lever handle operator. Designed for compression (solder) connection with a pressure rating of 600 PSI (CWP) and 150 PSI (SWP). Suitable for plumbing and heating systems, including potable water applications.

• 2-Piece In-Line Standard Ball Valve
• Lead Free
• Nominal Size: 1 IN

Product Highlights

This lead-free bronze ball valve is ideal for plumbing and heating systems, including potable water. It is 100% factory tested.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70LF-205-01
• Country of Origin: US

Technical Specifications

• Series/Model: Series 70LF-200
• Nominal Size: 1 IN
• Connection Type: Compression (Solder)
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -50 To 450 DEG F
• Opening: 0.87 IN
• Body Material: Lead-Free Bronze
• Handle Operator Type: Lever Handle
• Handle Material: Steel
• Stem Material: Brass
• Trim Material: Brass Stem and RPTFE Seat
• Packing Material: RPTFE
• Seat Material: Reinforced Polytetrafluroethylene
• Seal Material: MPTFE
• Body Material Specification: UNS C89836
• Ball And Stem Material Specification: UNS C27451
• Handle Finish/Color: Zinc Plated
• Ball Finish: Chrome Plated
• Industry Standards: MSS-SP-110 Compliant, NSF /ANSI 61-8, Annex G, NSF/ANSI 372, NSF /ANSI 372 Lead Free ANSI 3rd Party Certified
• CRN: OC10908.5C
• Width: 4-1/2 IN
• Lead Free: Yes
• Other Physical Dimension: 2-1/4 IN Inlet Center To Top Of Handle, 4.87 IN Handle Length
• End Style: Solder
• Port Type: Standard
• Softgoods Material: RPTFE
• Actuator Type: Lever
• Ball Material: Chrome Plated Brass
• Inlet to Outlet Length: 4-1/2 in
• Manufacturer Name: Apollo Conbraco
• Media: Water
• Series: 70LF-200
• Top to Inlet Center: 2-1/4 in
• Type: 2-Piece
• Application: Plumbing and heating systems, including potable water
• Warranty: 5 Years
• Domestic/Import: Domestic
• Orifice Size: 0.87 in
• Flow Coefficient (Cv): 43 Cv
• Material Standard: ASTM C89836, ASTM C27451, ASTM B16
• Actuation Type: Lever Handle
• Applicable Standard: MSS-SP-110, NSF/ANSI 61/372, CRN OC10908.5C, UPC
• End Connection: Soldered x Soldered
• End to End Distance: 4.5 Inch
• Inclusions/Features: ASTM B16 Brass Gland Nut, C27451 Brass Retainer, Zinc Plated Steel Lever Nut
• Maximum Working Temperature (F): 350
• Wsp Rating: 150psi
• Valve Type: Standard Ball Valve
• Pipe Size: 1
• Valve Structure: 2-Piece
• Handle Type: Lever
• Standards: MSS SP-110 Compliant
