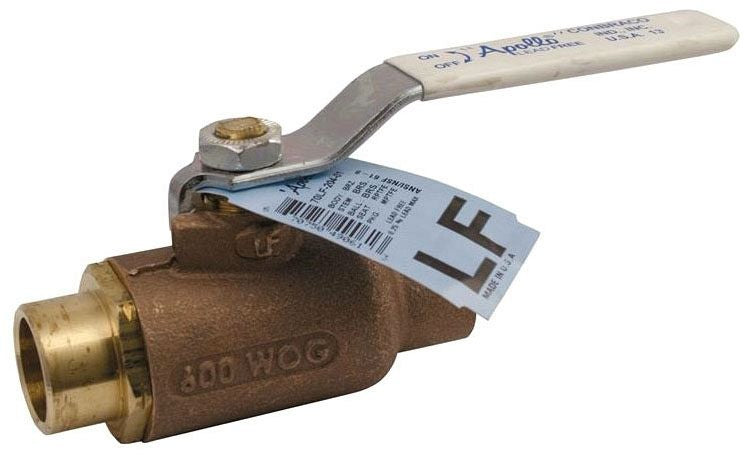

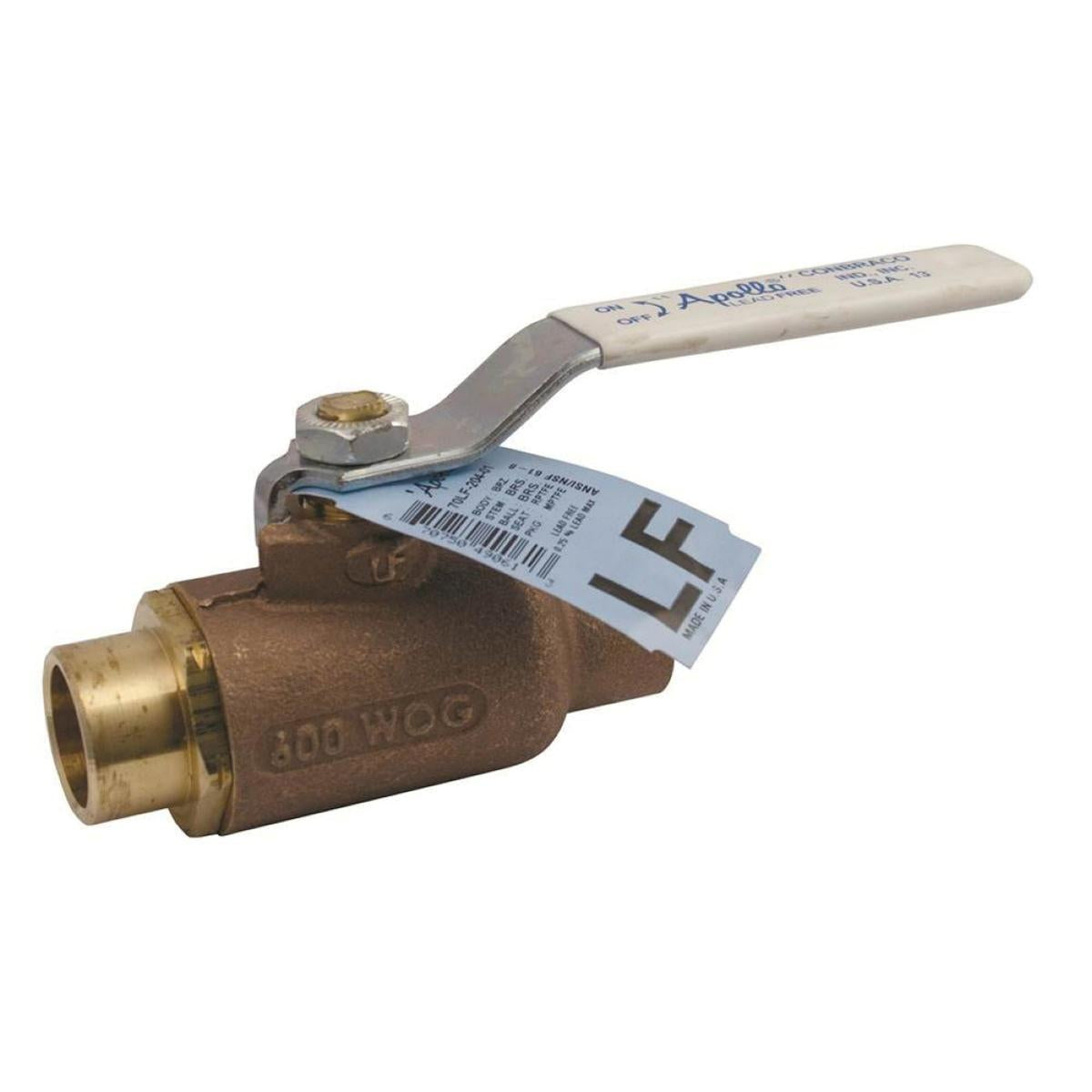

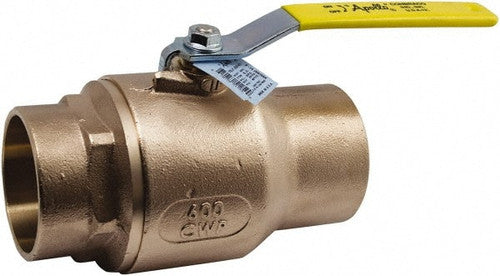

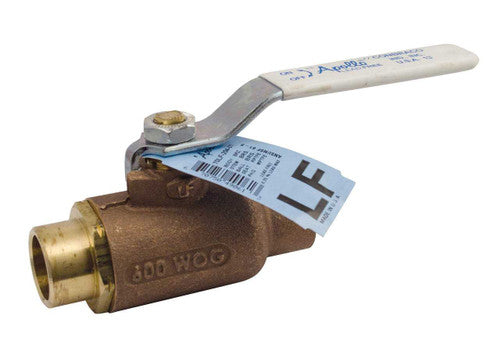

Conbraco 70LF-204-01 3/4 Lead Free Brz Sweat Ball Valve

Product Description

The CONBRACO 70LF-204-01 is a 2-Piece In-Line Standard Ball Valve, part of the Series 70LF-200. This lead-free bronze ball valve features a 3/4 IN nominal size and a compression (solder) connection type. Suitable for plumbing and heating systems, including potable water, it offers reliable performance with a wide range of popular options.

• 2-Piece In-Line Standard Ball Valve
• Lead Free
• Lead Free Bronze Body

Product Highlights

This lead-free ball valve is ideal for plumbing and heating systems, including potable water.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70LF-204-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 70LF-200
• Nominal Size: 3/4 IN
• Connection Type: Compression (Solder)
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -50 To 450 DEG F
• Opening: 0.68 IN
• Body Material: Bronze
• Handle Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Stem and RPTFE Seat
• Packing Material: RPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Body Material Specification: UNS C89836
• Ball And Stem Material Specification: UNS C27451
• Handle Finish/Color: Zinc Plated
• Ball Finish: Chrome Plated
• Industry Standards: MSS-SP-110 Compliant, NSF /ANSI 61-8, Annex G, NSF/ANSI 372, NSF /ANSI 372 Lead Free ANSI 3rd Party Certified, CRN: OC10908.5C
• Width: 3.87 IN
• Lead Free: Yes
• Port: Reduced
• Handle Type: Manual Lever
• Actuator Type: Lever
• Flow Coefficient (Cv): 30 Cv
• Material Standard: ASTM C89836, ASTM C27451, ASTM B16
• Media: Gas, Water
• Orifice Size: 0.68 in
• Port Type: Regular
• Top to Inlet Center: 2.12 in
• End Connection: Soldered x Soldered
• End to End Distance: 3.87 Inch
• Application: Plumbing, Heating System and Potable Water
• Type: 2-Piece
• End Style: solder
• Softgoods Material: RPTFE
• Manufacturer: Apollo Conbraco
• Manufacturer #: 70LF-204-01
• Valve Type: Standard Ball Valve
• Pipe Size: 3/4
• Valve Structure: 2-Piece
• Maximum Working Temperature (F): 350
• Wsp Rating: 150psi
• Applicable Standard: MSS SP-110, NSF/ANSI 61/372, CRN OC10908.5C, UPC
