Conbraco 70LF-203-01 1/2 Lead Free Brz Sweat Ball Valve

Product Description

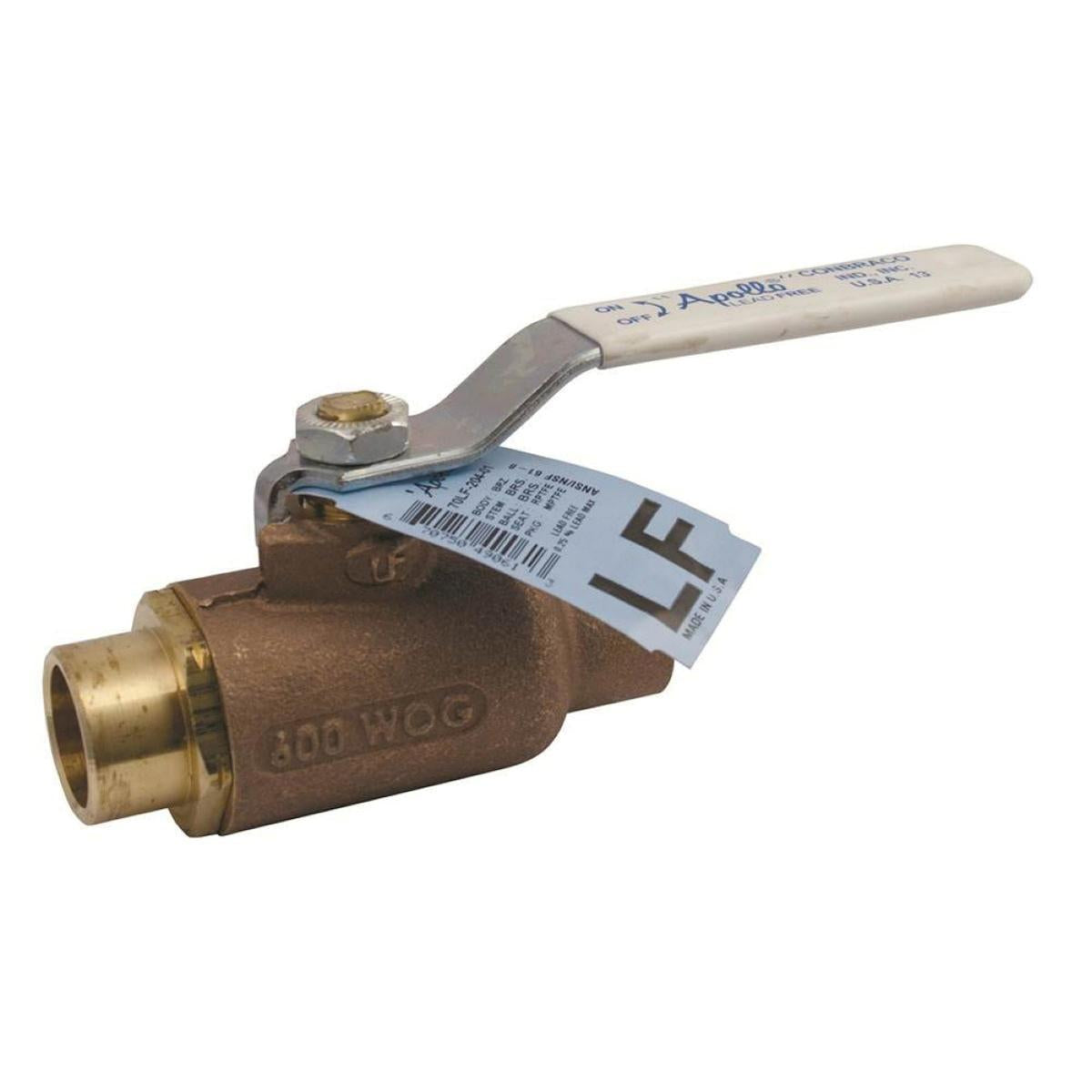

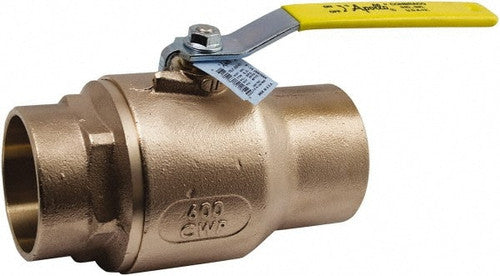

The CONBRACO 70LF-203-01 is a 2-Piece In-Line Standard Ball Valve, part of the Series 70LF-200. This lead-free bronze ball valve features a 1/2 IN nominal size and compression (solder) connection type. It is pressure rated to 600 PSI (CWP) and 150 PSI (SWP), with a temperature rating of -50 to 450 DEG F. Designed for plumbing and heating systems, including potable water.

• 2-Piece In-Line Standard Ball Valve
• Lead Free
• Lever Handle Operator Type

Product Highlights

This CONBRACO ball valve is ideal for plumbing and heating systems, including potable water. It features a lead-free design and durable construction.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70LF-203-01

Technical Specifications

• Series/Model: Series 70LF-200
• Nominal Size: 1/2 IN
• Connection Type: Compression (Solder)
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -50 To 450 DEG F
• Opening: 1/2 IN
• Body Material: Bronze
• Handle Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: MPTFE
• Seat Material: RPTFE
• Seal Material: PTFE
• Body Material Specification: UNS C89836
• Ball And Stem Material Specification: UNS C27451
• Handle Finish/Color: Zinc Plated
• Ball Finish: Chrome Plated
• Industry Standards: MSS-SP-110 Compliant, NSF /ANSI 61-8, Annex G, NSF/ANSI 372, NSF /ANSI 372 Lead Free ANSI 3rd Party Certified
• CRN: OC10908.5C
• Width: 2.87 IN
• Lead Free: Yes
• Other Physical Dimension: 1-3/4 IN Inlet Center To Top Of Handle, 3.87 IN Handle Length
• Valve Type: Standard Ball Valve
• Pipe Size: 1/2
• Valve Structure: 2-Piece
• End Connection: Soldered x Soldered
• Port Type: Standard
• Handle Type: Lever
• Maximum Working Temperature (F): 350
• Wsp Rating: 150psi
• Actuator Type: Lever Handle
• Domestic/Import: Domestic
• Inlet to Outlet Length: 2.87 in
• Material Standard: ASTM B584, C89836
• Media: Potable Water
• Orifice Size: 1/2 in
• Series: 70LF-200
• Top to Inlet Center: 1-3/4 in
• Softgoods Material: RPTFE
• Manufacturer: Apollo Conbraco
• Manufacturer #: 70LF-203-01
• Type: 2-Piece
