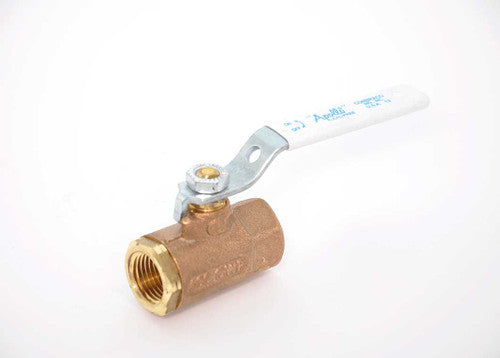

Conbraco 70LF-108-01 2 Lead Free Brz Ball Valve 2 IN

Product Description

The CONBRACO 70LF-108-01 is a 2-Piece In-Line Standard Ball Valve. It features a bronze body, lever handle, and FNPT connection type. Designed with a pressure rating of 600 PSI (CWP) and 150 PSI (SWP), and a temperature rating of 0 - 450 DEG F. Suitable for plumbing and heating systems, including potable water.

• 2-Piece In-Line Standard Ball Valve
• Lead Free
• Nominal Size: 2 IN

Product Highlights

This lead-free bronze ball valve is ideal for various applications requiring a reliable shutoff mechanism.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70LF-108-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 70LF-100
• Nominal Size: 2 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: 0 - 450 DEG F
• Opening: 1-1/2 IN
• Body Material: C89836 Lead-Free Bronze
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: C27451 Lead-Free Brass
• Trim Material: Brass Ball
• Packing Material: RPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Body Material Specification: UNS C89836
• Ball And Stem Material Specification: UNS C27451
• Handle Finish/Color: Zinc Plated
• Ball Finish/Color: Chrome Plated
• Industry Standards: MSS-SP-110 Compliant, CRN: OC10908.5C, NSF /ANSI 61-8, Annex G, NSF/ANSI 372 Lead Free ANSI 3rd Party Certified
• Width: 4.68 IN
• Lead Free: Yes
• brand: Apollo
• series: 70 Series Ball Valves
• product type: 70LF10X01
• manufacturer: Aalberts integrated piping systems Americas, Inc. (Apollo)
• size: 2"
• max operating pressure liquid: 600 psi
• Housing material: Bronze
• Surface protection housing: None
• Material ball: Brass
• Material spindle: Brass
• Nominal diameter connection 1: DN 50
• Outer pipe diameter connection 1: 60.33mm
• Outer pipe diameter connection 1 (imperial): 2.38"
• Connection 1: Internal thread conical (NPT)
• Nominal diameter connection 2: DN 50
• Outer pipe diameter connection 2: 60.33mm
• Outer pipe diameter connection 2 (imperial): 2.38"
• Connection 2: Internal thread conical (NPT)
• With filter: No
• With thermometer: No
• FM quality mark: No
• UL quality mark: No
• ULC quality mark: No
• LPCB quality mark: No
• Medically clean: No
• Grease-free: No
• Housing construction: 2-part
• Full bore: No
• Length of connection 1: 59.66mm
• Length of connection 1 (imperial): 2.35"
• Working length connection 1: 44.42mm
• Working length connection 1 (imperial): 1.75"
• Length of connection 2: 58.88mm
• Length of connection 2 (imperial): 2.32"
• Working length connection 2: 43.82mm
• Working length connection 2 (imperial): 1.73"
• Handle height: 22.81mm
• Handle height (imperial): 0.9"
• Handgrip length: 25.35mm
• Handgrip length (imperial): 1"
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• Item: Ball Valve, 2 Way Valve
• Port: Full
• Threaded Connection: Threaded (FNPT x FNPT)
• Max Pressure: 600 psig CWP 150 psig SWP
• Ball Material: C27451 Lead-Free Brass, Chrome Plated
• Handle: Steel, zinc plated w/vinyl
• Handle Type: Lever
• Stem Packing: RPTFE
• Stem Bearing: RPTFE
• Handle Style: Lever
• Steam Rating: 150 psi
• Port Type: Standard
• Product Types: Standard
• End Connections: Female NPT
• Reinforced Seat Material: Reinforced PTFE
• Material: Lead Free Bronze
• Pipe Size: 2 in
• Style: 2 Piece
• WOG Rating: 600 psi
