Conbraco 70LF-107-01 Lead Free Brz Ball Valve 1-1/2 IN

Product Description

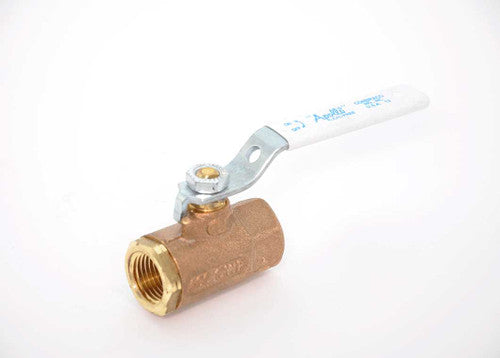

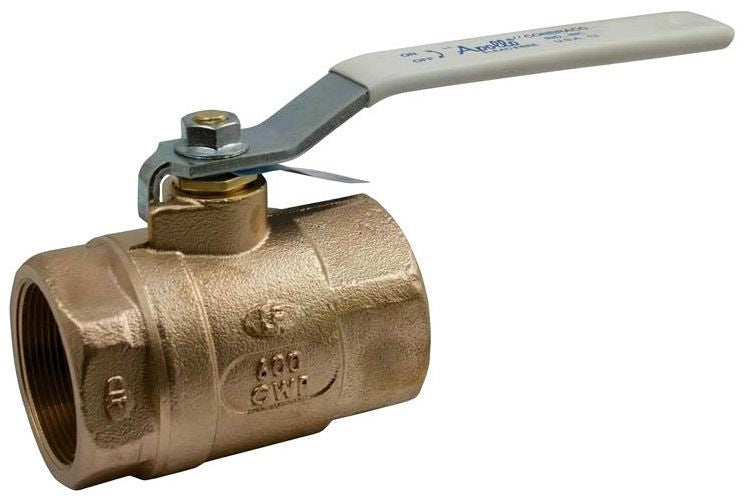

The CONBRACO 70LF-107-01 is a 2-Piece In-Line Standard Ball Valve, part of the Series 70LF-100. This lead-free bronze ball valve features a 1-1/2 IN nominal size and FNPT connection type. It is designed for plumbing and heating systems and potable water applications. The valve has a pressure rating of 600 PSI (CWP) and 150 PSI (SWP).

• 2-Piece In-Line Standard Ball Valve
• Lead Free
• Full Port

Product Highlights

This ball valve features a bronze body, lever handle, and RPTFE seat material. It meets MSS-SP-110 and NSF/ANSI 61/372 standards.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70LF-107-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 70LF-100
• Nominal Size: 1-1/2 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: 0 - 450 DEG F
• Opening: 1-1/4 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: RPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Specification Body: UNS C89836
• Material Specification Ball And Stem: UNS C27451
• Finish/Color: Zinc Plated Handle, Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant, CRN: OC10908.5C, NSF /ANSI 61-8, Annex G, NSF/ANSI 372 Lead Free ANSI 3rd Party Certified
• Width: 4.37 IN
• Lead Free: Yes
• Port: Full
• Handle Type: Lever
• Stem Packing: RPTFE
• Stem Bearing: RPTFE
• END CONNECTION: FEMALE THREADED X FEMALE THREADED
• END TO END DISTANCE: 4.37 INCH
• ACTUATION TYPE: LEVER HANDLE
• STEM MATERIAL: C27451 BRASS
• PORT TYPE: REGULAR
• BALL MATERIAL: C27451 CHROME PLATED BRASS
• VACUUM SERVICE: VACUUM SERVICE TO 29 INCH HG
• MODEL: 70LF-100
