Conbraco 70LF-106-01 Lead Free Brz Ball Valve 1-1/4 IN

Product Description

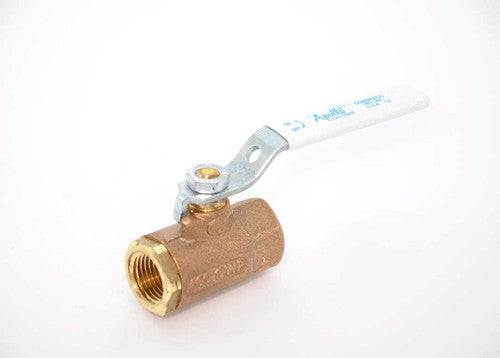

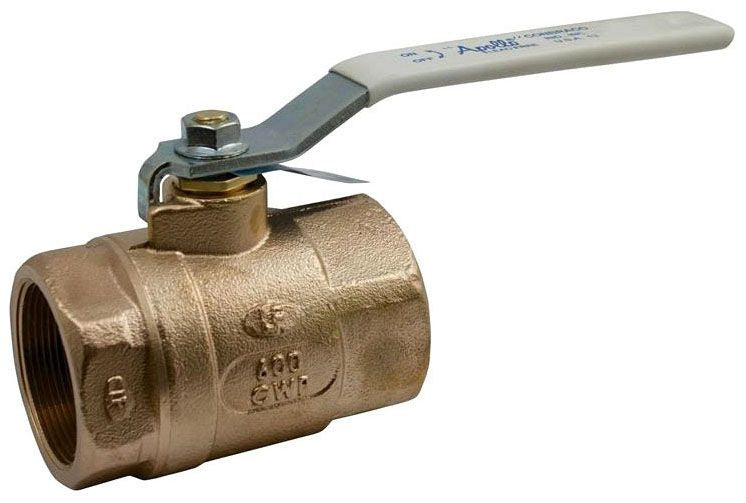

The CONBRACO 70LF-106-01 is a 2-Piece In-Line Standard Ball Valve. This valve features a bronze body, lever handle operator, and RPTFE seat material. It is designed with a 1-1/4 IN nominal size and FNPT connection type. Suitable for plumbing and heating systems, including potable water applications.

• Nominal Size: 1-1/4 IN
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: 0 - 450 DEG F

Product Highlights

This lead-free ball valve is ideal for plumbing and heating systems. It features a bronze body, steel handle with vinyl grip, and RPTFE seats.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70LF-106-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 70LF-100
• Nominal Size: 1-1/4 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: 0 - 450 DEG F
• Body Material: Bronze
• Handle Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: RPTFE Stem
• Seat Material: RPTFE
• Body Material Specification: UNS C89836
• Ball And Stem Material Specification: UNS C27451
• Handle Finish/Color: Zinc Plated
• Ball Finish: Chrome Plated
• Industry Standards: MSS-SP-110 Compliant, CRN: OC10908.5C, NSF /ANSI 61-8, Annex G, NSF/ANSI 372 Lead Free ANSI 3rd Party Certified
• Lead Free: Yes
• Port: Full
• Handle Type: Lever
• Stem Packing: RPTFE
• Stem Bearing: RPTFE
• Actuation Type: Lever Handle
• Applicable Standard: MSS SP-110, ANSI/NSF 61/372, CRN OC10908.5C, ISO 9001
• Application: Plumbing and Heating System, Potable Water
• Ball Material: C27451 Chrome Plated Brass
• End Connection: Female Threaded x Female Threaded
• End to End Distance: 4 Inch
• Inclusions/Features: Zinc Plated Steel Lever Nut, B16 Brass Gland Nut, C89836 Bronze Retainer, Adjustable Packing Gland
• Port Type: Regular
• Type: 2-Piece
• Configuration: Standard
• Media: Gas, Water
• Domestic/Import: Domestic
• Flow Coefficient (Cv): 48 Cv
• Inlet to Outlet Length: 4 in
• Material Standard: ASTM C89836, ASTM C27451, ASTM B16
• Top to Inlet Center: 2.62 in
