Conbraco 70LF-105-27 1 Lead Free Brz Ball Valve W/Lever Lock Hdl

Product Description

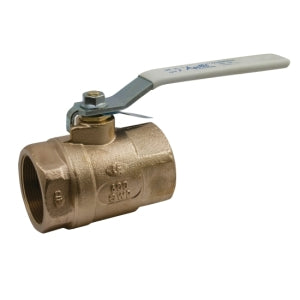

The CONBRACO 70LF-105-27 is a 2-piece standard port in-line ball valve. Featuring a bronze body and a latch-lock lever handle, this valve is designed for durability and ease of use. It is suitable for various applications, including plumbing and heating systems. The valve has a 1 IN nominal size and FNPT connection type.

• 2-Piece Standard Port In-Line Ball Valve
• Lead Free
• Latch-Lock Lever Handle Operator

Product Highlights

Ideal for plumbing and heating systems, including potable water. Offers trusted performance with a wide range of popular options.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70LF-105-27
• Country of Origin: USA

Technical Specifications

• Series/Model: Series 70LF-100
• Nominal Size: 1 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: 0 - 450 DEG F
• Opening Size: 0.87 IN
• Body Material: Bronze
• Handle Operator Type: Latch-Lock Lever Handle
• Handle Material: Stainless Steel
• Stem Material: 316 Stainless Steel
• Trim Material: Brass Stem and RPTFE Seat
• Packing Material: RPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Body Material Specification: UNS C89836
• Industry Standards: MSS-SP-110 Compliant, CRN: OC10908.5C, NSF /ANSI 61-8, Annex G, NSF/ANSI 372 Lead Free ANSI 3rd Party Certified
• Width: 3.37 IN
• Lead Free: Yes
• Actuator Type: Latch-Lock Lever
• Ball Material: Brass
• Domestic/Import: Domestic
• Flow Coefficient (Cv): 43 Cv
• Inlet to Outlet Length: 3.37 in
• Material Standard: ASTM C89836, ASTM C27451, ASTM B16
• Media: Gas, Water
• Port Type: Regular
• Top to Inlet Center: 2.25 in
• End Style: FNPT
• Softgoods Material: RRPTFE
• Type: 2-Piece
