Conbraco 70LF-104-01 3/4 Lead Free Brz Ball Valve

Product Description

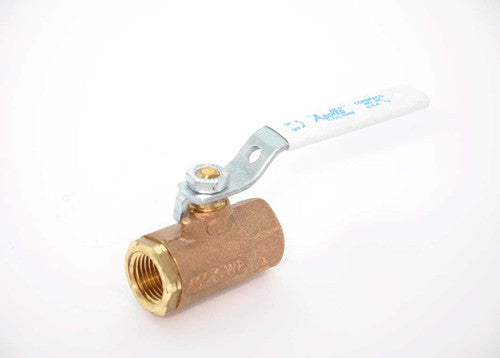

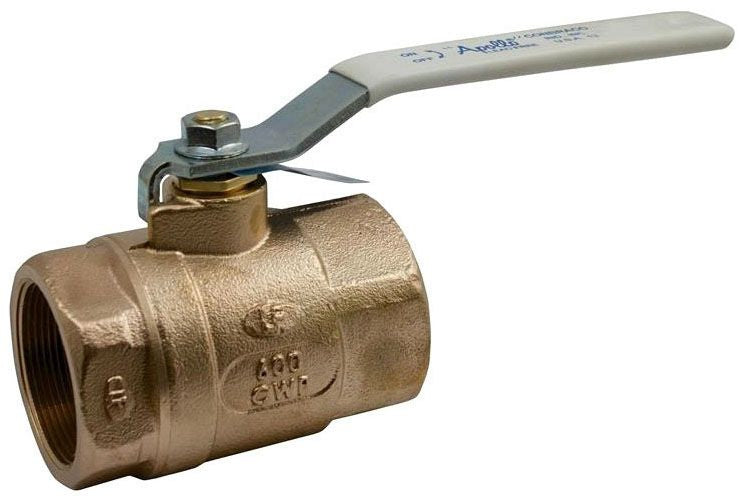

The CONBRACO 70LF-104-01 is a 2-Piece In-Line Standard Ball Valve. Constructed with a bronze body, this valve features a 3/4 IN nominal size and FNPT connection type. It is suitable for plumbing and heating systems, including potable water applications. The valve has a pressure rating of 600 PSI (CWP) and 150 PSI (SWP).

• Lead Free
• Lever Handle Operator
• Temperature rating of 0 - 450 DEG F

Product Highlights

This lead-free bronze ball valve is ideal for plumbing and heating systems, offering reliable performance with its robust construction and compliance with industry standards.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70LF-104-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 70LF-100
• Nominal Size: 3/4 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: 0 - 450 DEG F
• Opening: 0.68 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Zinc Plated Steel Lever, Vinyl Grip
• Stem Material: C27451 Brass
• Trim Material: Brass Ball
• Packing Material: RPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Specification Body: UNS C89836
• Material Specification Ball And Stem: UNS C27451
• Width: 3 IN
• Lead Free: Yes
• Port Type: Standard
• Actuation Type: Lever Handle
• Applicable Standard: MSS SP-110, ANSI/NSF 61/372, CRN OC10908.5C, ISO 9001
• Application: Plumbing and Heating System, Potable Water
• Ball Material: C27451 Chrome Plated Brass
• End Connection: Female Threaded x Female Threaded
• End to End Distance: 3 Inch
• Inclusions/Features: Zinc Plated Steel Lever Nut, B16 Brass Gland Nut, C27451 Brass Retainer, Adjustable Packing Gland
• Type: 2-Piece
• Inlet to Outlet Length: 3 in
• Top to Inlet Center: 2.12 in
• Domestic / Import: Domestic
