Conbraco 70LF-103-01 Lead Free Brz Ball Valve 1/2 IN

Product Description

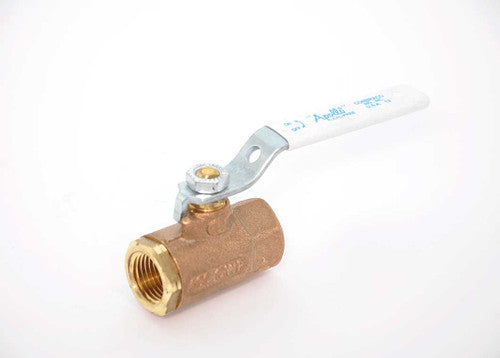

The CONBRACO 70LF-103-01 is a 2-Piece In-Line Standard Ball Valve, part of the Series 70LF-100. This lead-free bronze ball valve features a 1/2 IN opening and FNPT connection. Designed with a steel lever handle with vinyl grip and a brass stem, it withstands pressure up to 600 PSI (CWP) and 150 PSI (SWP).

• 2-Piece In-Line Standard Ball Valve
• Lead Free
• Nominal Size: 1/2 IN

Product Highlights

This lead-free bronze ball valve is suitable for various applications, ensuring safe and reliable performance with its robust design and compliance with industry standards.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70LF-103-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 70LF-100
• Nominal Size: 1/2 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: 0 - 450 DEG F
• Opening: 1/2 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: RPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Specification Body: UNS C89836
• Material Specification Ball And Stem: UNS C27451
• Finish/Color: Zinc Plated Handle, Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant, CRN: OC10908.5C, NSF /ANSI 61-8, Annex G, NSF/ANSI 372 Lead Free ANSI 3rd Party Certified
• Width: 2-1/4 IN
• Lead Free: Yes
• Port: Full
• Handle Type: Lever
• Stem Packing: RPTFE
• Stem Bearing: RPTFE
• End Connections: Female NPT
• Material: Lead Free Bronze
• Pipe Size: 1/2 in
• Port Type: Standard
• Style: 2 Piece
• WOG Rating: 600 psi
• Brand: Conbraco
• MPN: 70LF10301
• Manufacturer Part Number: 70LF10301
• Manufacturer: Conbraco
• Valve Type: Ball Valve
• Steam Rating: 150 psi
