Conbraco 70LF-102-01 3/8 Lead Free Brz Ball Valve

Product Description

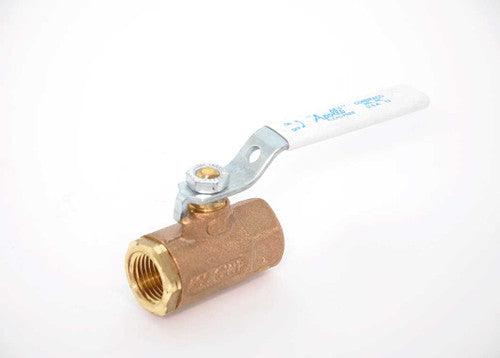

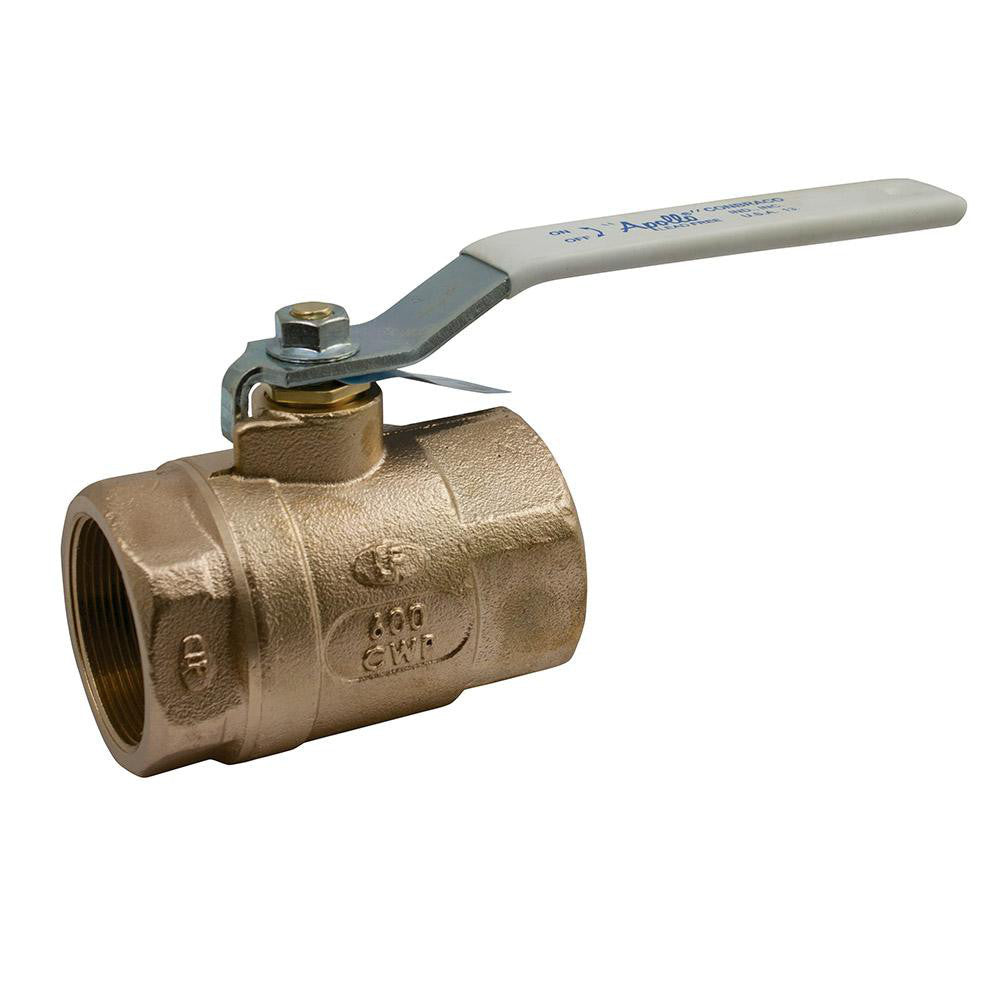

The CONBRACO 70LF-102-01 is a 2-Piece In-Line Standard Ball Valve, part of the Series 70LF-100. It features a 3/8 IN nominal size and FNPT connection type. Constructed with a bronze body and a brass ball and stem, this valve is suitable for applications requiring lead-free materials. It has a pressure rating of 600 PSI (CWP) and a temperature rating of 0 - 450 DEG F.

• 2-Piece In-Line Standard Ball Valve
• Lead Free
• Lever Handle Operator Type

Product Highlights

This lead-free bronze ball valve is ideal for plumbing and heating systems, including potable water applications. It meets MSS-SP-110 standards.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70LF-102-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 70LF-100
• Nominal Size: 3/8 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: 0 - 450 DEG F
• Opening: 0.37 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Stem and RPTFE Seat
• Packing Material: RPTFE Stem
• Seat Material: RPTFE
• Seal Material: Reinforced Polytetrafluroethylene
• Body Material Specification: UNS C89836
• Ball And Stem Material Specification: UNS C27451
• Handle Finish/Color: Zinc Plated
• Ball Finish: Chrome Plated
• Industry Standards: MSS-SP-110 Compliant, CRN: OC10908.5C, NSF /ANSI 61-8, Annex G, NSF/ANSI 372 Lead Free ANSI 3rd Party Certified
• Width: 2.06 IN
• Lead Free: Yes
• Port: Full
• Handle Type: Lever
• End Connections: Female NPT
• Pipe Size: 3/8 in
• Port Type: Standard
• Style: 2 Piece
• WOG Rating: 600 psi
• End Style: FNPT
• Softgoods Material: RRPTFE
• Actuator Type: Lever
• Ball Material: Chrome Plated Brass
• Inlet to Outlet Length: 2.06
• Manufacturer: Apollo Conbraco
• Manufacturer #: 70LF-102-01
• Series: 70LF-100
• Type: 2-Piece
• Valve Type: Ball; Standard
• Valve Structure: 2-Piece
• Standards: MSS SP-110 Compliant
• Materials Sourced From: United States
• Brand: Apollo Valves
• MPN: 70LF-102-01
