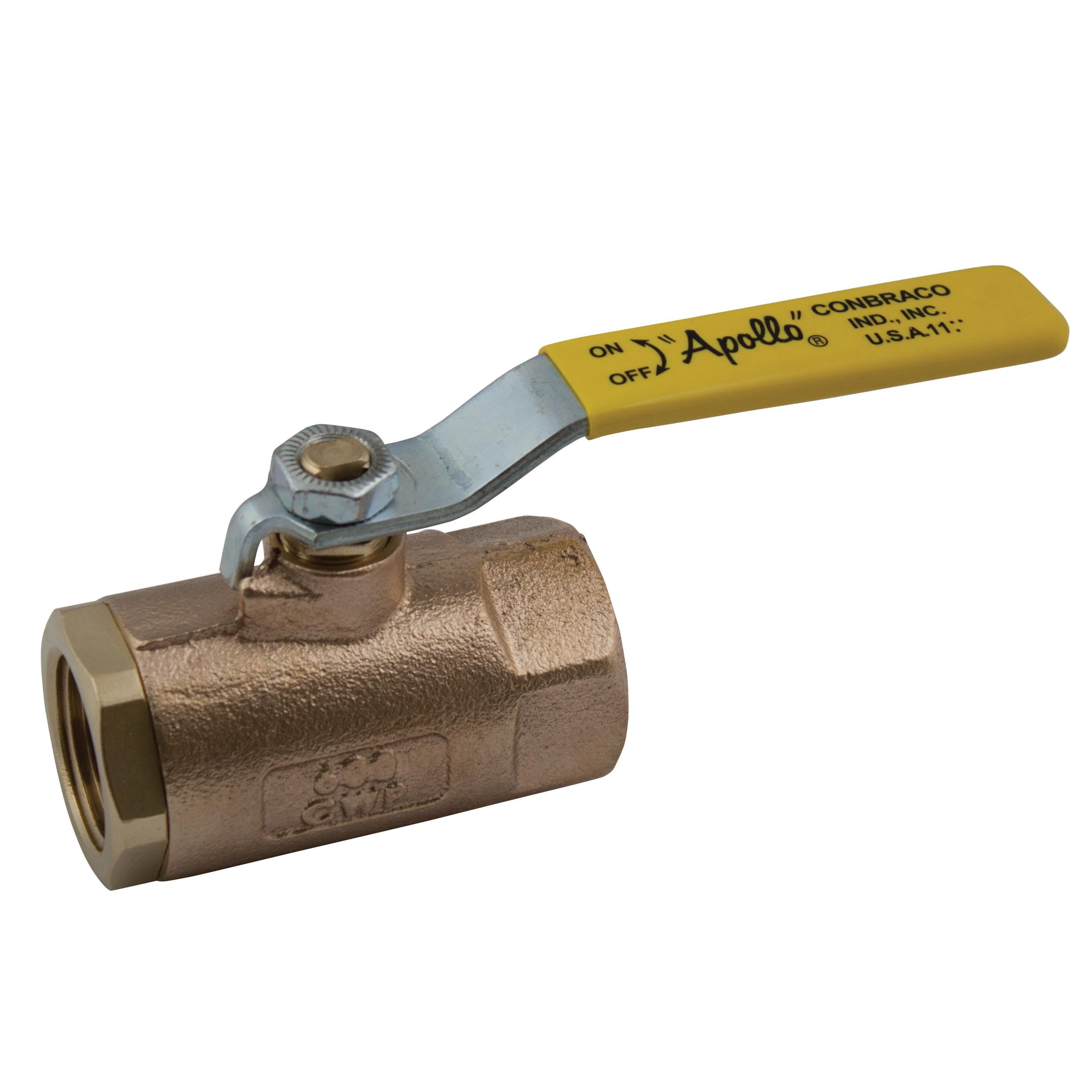

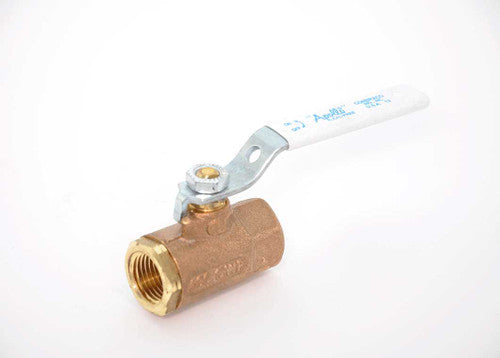

Conbraco 70LF-101-01 1/4 Lead Free Brz Ball Valve

Product Description

The CONBRACO 70LF-101-01 is a 2-Piece In-Line Standard Ball Valve. This lead-free bronze ball valve features a 1/4 IN nominal size and FNPT connection type. It has a pressure rating of 600 PSI (CWP) and 150 PSI (SWP), with a temperature rating of 0 - 450 DEG F. The valve has a 0.37 IN opening and a steel lever handle with vinyl grip.

• 2-Piece In-Line Standard Ball Valve
• Lead Free
• Bronze body material

Product Highlights

The CONBRACO 70LF-101-01 ball valve is suitable for various applications requiring a reliable shutoff mechanism.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70LF-101-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 70LF-100
• Nominal Size: 1/4 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: 0 - 450 DEG F
• Opening: 0.37 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: MPTFE
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Specification Body: UNS C89836
• Material Specification Ball And Stem: UNS C27451
• Finish/Color: Zinc Plated Handle, Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant, CRN: OC10908.5C, NSF /ANSI 61-8, Annex G, NSF/ANSI 372 Lead Free ANSI 3rd Party Certified
• Lead Free: Yes
• Port: Full
• Ball Material: C27451 Lead-Free Brass, Chrome Plated
• Stem Packing: RPTFE
• Stem Bearing: RPTFE
• Domestic/Import: Domestic
• Inlet to Outlet Length: 2.06 in
• Material Standard: ASTM B584 C84400, ASTM B16
• Port Type: Standard
• Series: 70LF
• Actuator Type: Lever Operated
• End Style: FNPT
• Softgoods Material: RRPTFE
• Type: 2-Piece
