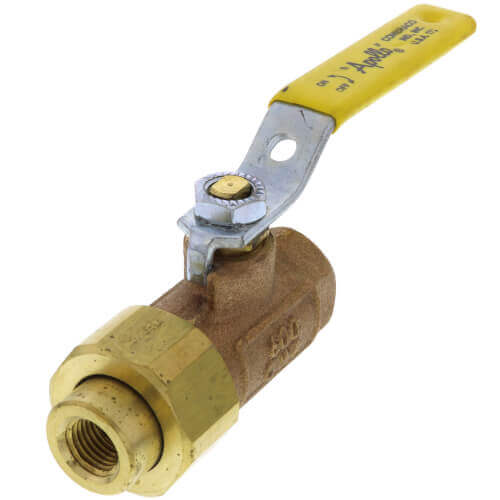

Conbraco 7030501 1/2 in FNPT Bronze Ball Valve Inline Single Union

Product Description

The Conbraco 7030501 is a 1/2 inch FNPT Bronze Ball Valve designed for inline applications. This valve features a single union design that simplifies installation and maintenance.

• Fluorocarbon O-Ring sealed for reliability
• Blowout proof stem design enhances safety
• Adjustable packing gland for optimal performance

Product Highlights

This valve provides a durable solution for various plumbing needs.

Product Information

Standard Information

• Brand: Conbraco
• Part Number: 7030501

Technical Specifications

• Weight: 2.45 lbs
• Pipe Size: 1 in
• Stem Type: Blowout Proof
• Body Style: Inline Single Union
• Connection: Threaded
• Valve Size: 1 NPT
• Handle Type: Lever
• Ball Material: Chrome Plated Brass
• Body Material: Bronze
• Porting Style: Standard Port
• Seat Material: RPTFE
• Maximum Pressure: 600 psi CWP
• Temperature Range: -20 to 450 °F
• Flow Coefficient (Cv): 43 Cv
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
