Product Description

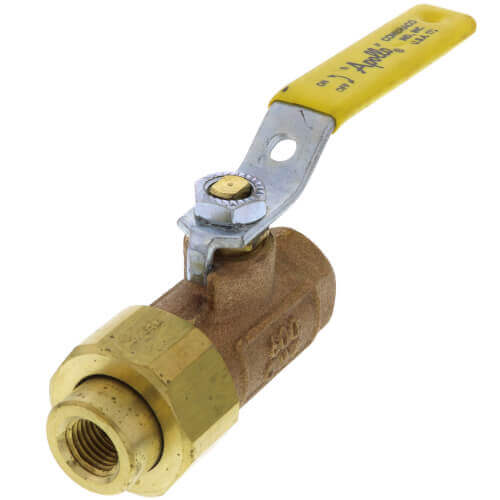

The Conbraco 7030401 is a 3/4 inch FNPT Bronze Ball Valve with an inline single union design. This valve offers convenience and reliability in plumbing applications. It features a blowout-proof stem for safety and an adjustable packing gland for maintenance ease. The fluorocarbon O-ring seal ensures a secure fit, reducing the need for frequent adjustments.
- Material: Bronze for durability
- Vacuum service capabilities to 29 inches Hg
- Maximum pressure rating of 600 psi for cold water service
Product Highlights
This valve combines a union with a ball valve shut-off, saving time and labor by eliminating extra connections. Its standard port design provides efficient flow, making it suitable for various plumbing tasks.
Product Information
Standard Information
-
Brand: Conbraco
-
MPN: 7030401
Technical Specifications
-
Weight: 1.90 lbs
-
Pipe Size: 3/4 in
-
Stem Type: Blowout Proof
-
Body Style: Inline Single Union
-
Connection: Threaded
-
Valve Size: 3/4 NPT
-
Handle Type: Lever
-
Body Material: Bronze
-
Ball Material: Chrome Plated Brass
-
Seat Material: RPTFE
-
Maximum Pressure: 600 psi CWP
-
Temperature Range: -20 to 450 °F
-
Flow Coefficient (Cv): 30 Cv
-
Standards Met: MSS-SP-110
