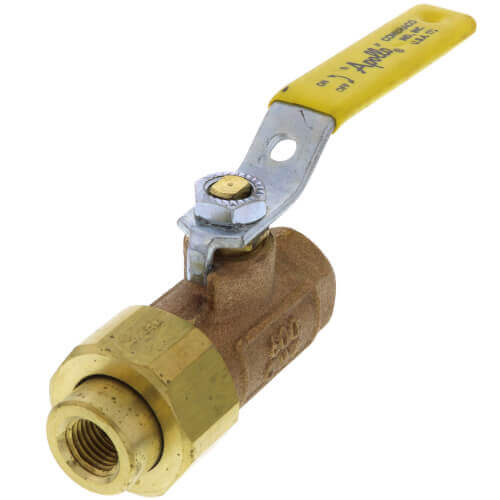

Conbraco 7030301 1/2 in FNPT Bronze Ball Valve Inline Single Union

Product Description

The Conbraco 7030301 is a versatile ball valve designed for plumbing applications. This 1/2 inch FNPT bronze ball valve features a single union design for ease of installation and maintenance. The valve includes fluorocarbon O-ring sealing, ensuring reliable performance under various conditions.

• Fluorocarbon O-ring sealed single union
• Blowout-proof stem design
• Adjustable packing gland for improved performance

Product Highlights

This ball valve is suitable for vacuum service up to twenty-nine inches of mercury and can handle maximum pressures of six hundred psi cold working pressure.

Product Information

Standard Information

• Brand: Conbraco
• MPN: 7030301

Technical Specifications

• Body Material: Bronze
• Ball Material: Chrome Plated Brass
• Valve Size: 1/2 NPT
• Maximum Pressure: 600 psi CWP
• Temperature Range: -20 to 450 °F
• Weight: 0.96 lbs
• Overall Length: 5.87 inches
• Connection Type: FNPT UNION x FNPT BALL VALVE
• Flow Coefficient (Cv): 15 Cv
